TL7709ACDR

TL7709ACDR Overview

Product belongs to the TL7709A series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Active High Active Low Open Drain Supplier device package: 8-SOIC The Complementary. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 1 μs Maximum Propagation Delay. This product's 7.6V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 1800 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 18 V Minimum supply voltage is 3.5 V This product includes No Watchdog This product's 7.6 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's Programmable is 200 ms. The 7.7 V is 2.35 V. 7.5 V is set to 2.29 V.

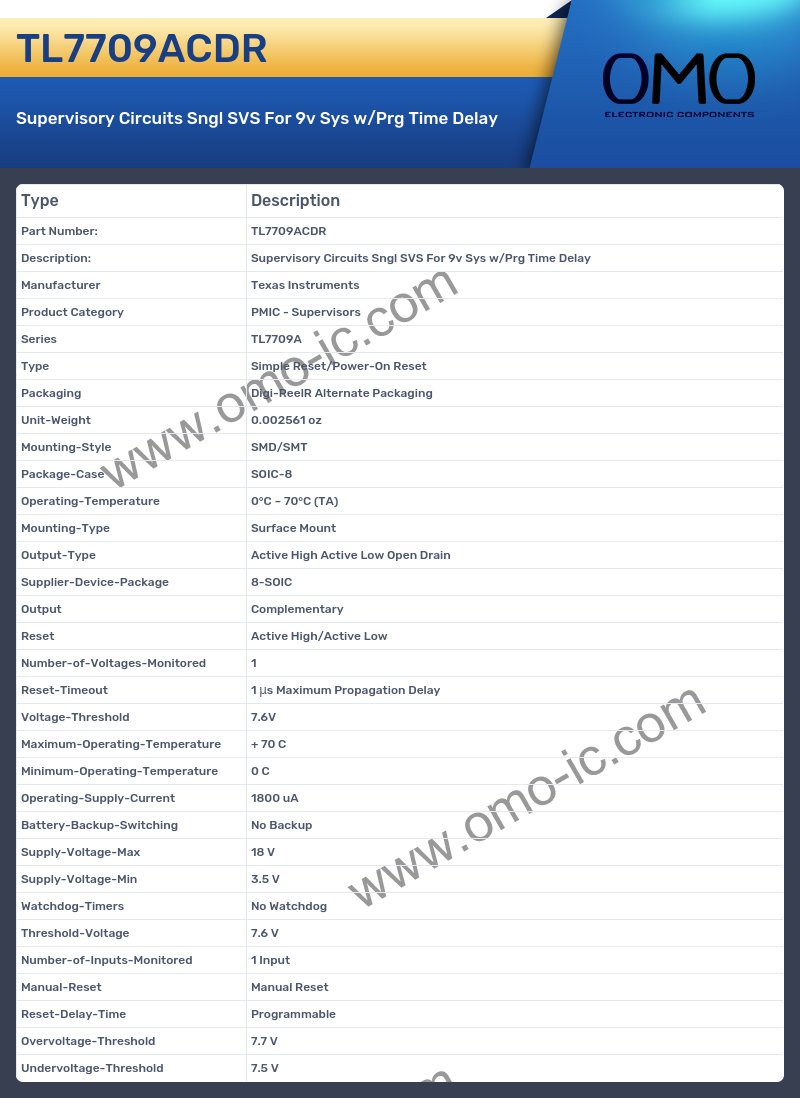

TL7709ACDR Image

TL7709ACDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TL7709A
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active High Active Low Open Drain
• Supplier-Device-Package 8-SOIC
• Output Complementary
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 1 μs Maximum Propagation Delay
• Voltage-Threshold 7.6V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 1800 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3.5 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 7.6 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time Programmable
• Overvoltage-Threshold 7.7 V
• Undervoltage-Threshold 7.5 V
