TLC2272ACD

TLC2272ACD Overview

Product belongs to the TLC2272A series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Trade name: LinCMOS. LinCMOS is the technology used. Number of channels: 2 Channel The amplifier is of Low Noise Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3 mA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.4 V SOIC-8 Input bias current of 60 pA The 950 uV. The Negative Rail to Positive Rail - 1 V. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 50 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.0006 pA/sqrt Hz. Maximum dual supply voltage: +/- 8 V Minimum dual supply voltage of +/- 2.2 V

TLC2272ACD Image

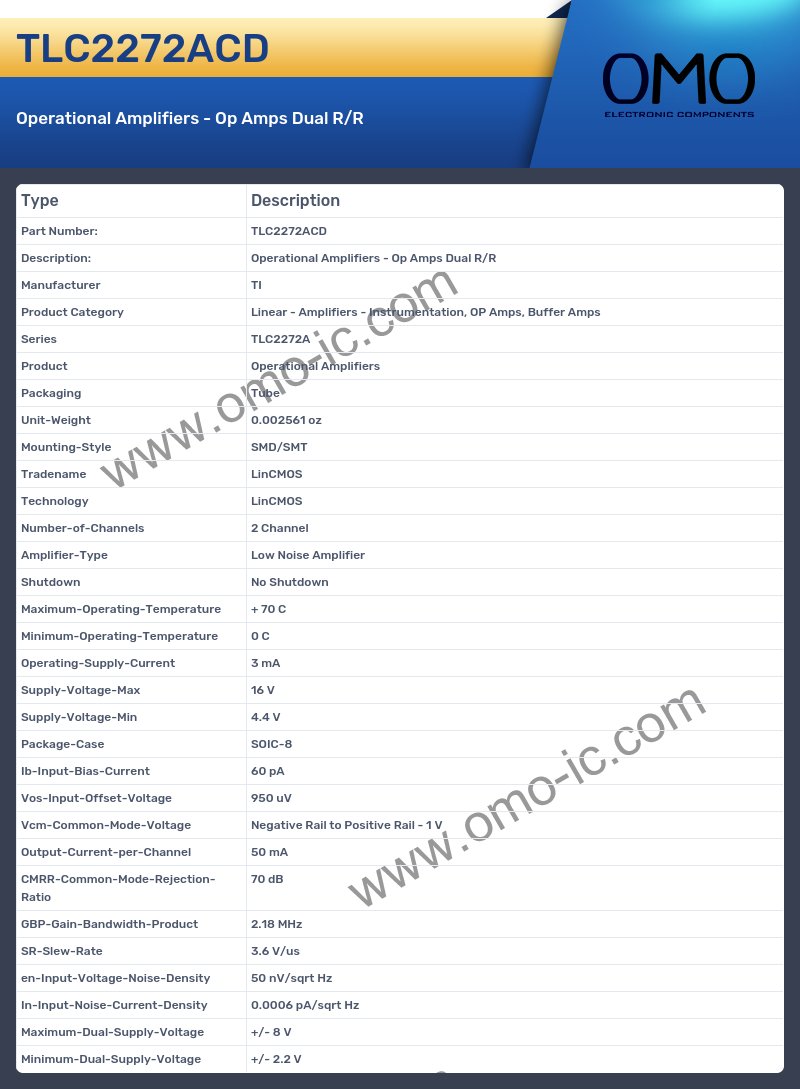

TLC2272ACD Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TLC2272A
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Tradename LinCMOS
• Technology LinCMOS
• Number-of-Channels 2 Channel
• Amplifier-Type Low Noise Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3 mA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.4 V
• Package-Case SOIC-8
• Ib-Input-Bias-Current 60 pA
• Vos-Input-Offset-Voltage 950 uV
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1 V
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 2.18 MHz
• SR-Slew-Rate 3.6 V/us
• en-Input-Voltage-Noise-Density 50 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.0006 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 8 V
• Minimum-Dual-Supply-Voltage +/- 2.2 V
