TLC556CDR

TLC556CDR Overview

Product belongs to the LinCMOS series. Type: 555 Type, Timer/Oscillator (Dual) Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style Trade name: LinCMOS. SOIC-14 This product's 2.1MHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 18 V Supplier device package: 14-SOIC This product has a 720μA of 200μA. Power-off control: 950 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 130 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 2 V High-Level-Output-Current of 100 mA - 10 mA low-level output current 2 Timer Internal Timers

TLC556CDR Image

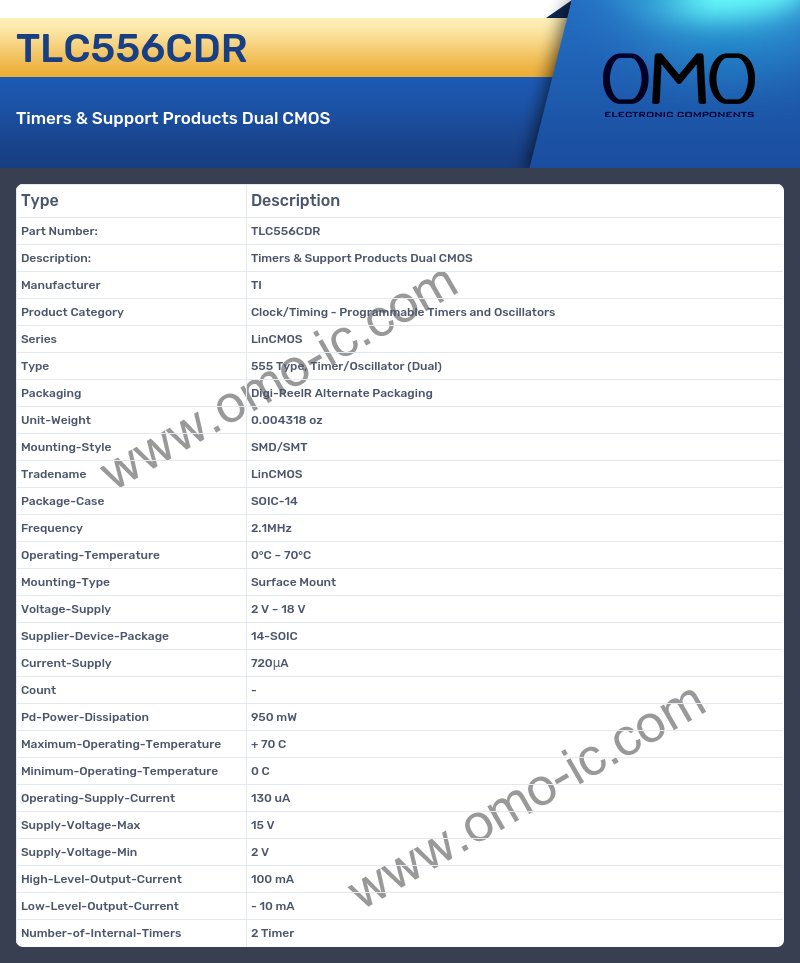

TLC556CDR Specifications

• Manufacturer TI
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series LinCMOS
• Type 555 Type, Timer/Oscillator (Dual)
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Tradename LinCMOS
• Package-Case SOIC-14
• Frequency 2.1MHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 2 V ~ 18 V
• Supplier-Device-Package 14-SOIC
• Current-Supply 720μA
• Count -
• Pd-Power-Dissipation 950 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 130 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 2 V
• High-Level-Output-Current 100 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 2 Timer
