TLV5606CD

TLV5606CD Overview

Product belongs to the TLV5606 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 8-SOIC Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 20μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 900 uA is 92 nA. Serial 3-Wire 4-Wire SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 102 kS/s Sampling Rate Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 1 LSB

TLV5606CD Image

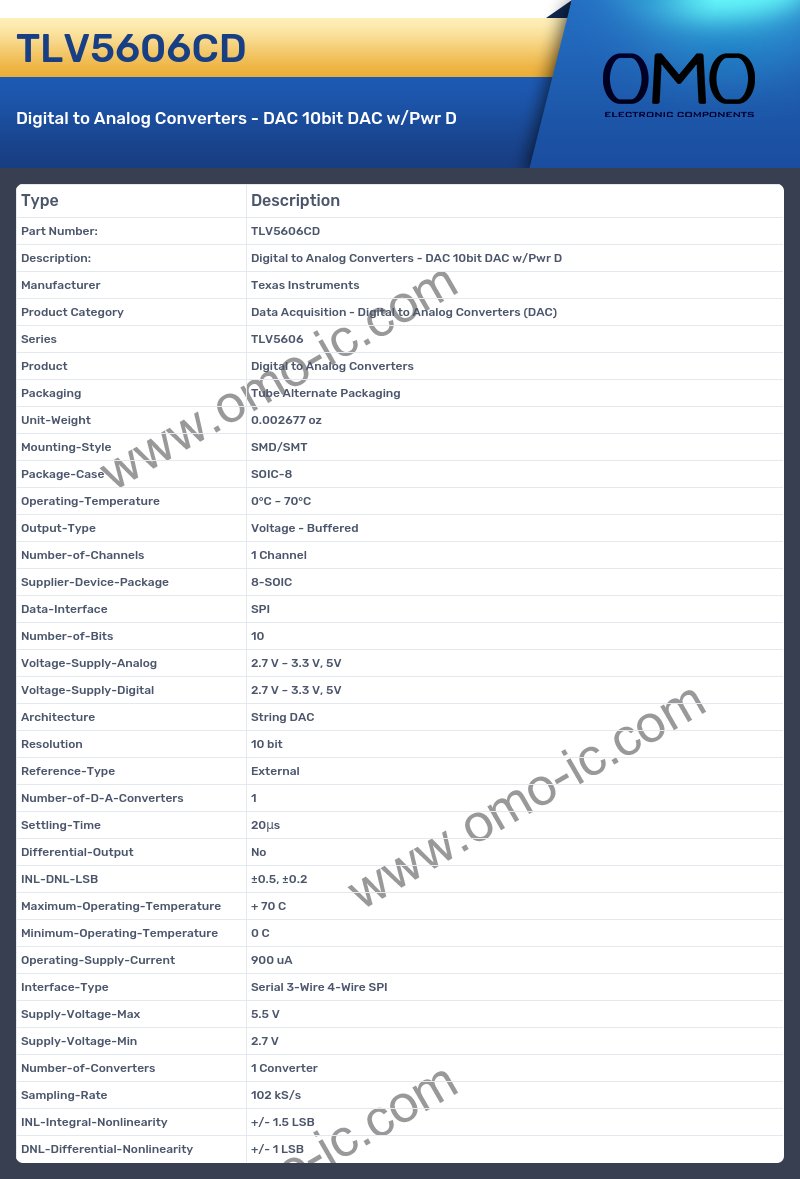

TLV5606CD Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TLV5606
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Architecture String DAC
• Resolution 10 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 20μs
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.2
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 900 uA
• Interface-Type Serial 3-Wire 4-Wire SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 102 kS/s
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
