TN805-600H Overview

Product belongs to the - series. Tube is the packaging method for this product TO-251-3 Short Leads, IPak, TO-251AA Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: I-Pak 25mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 5mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 5A Current-On-State-It-AV-Max 8A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 70A, 73A for 50-60Hz Itsm. SCR-Type: Standard Recovery;

TN805-600H Image

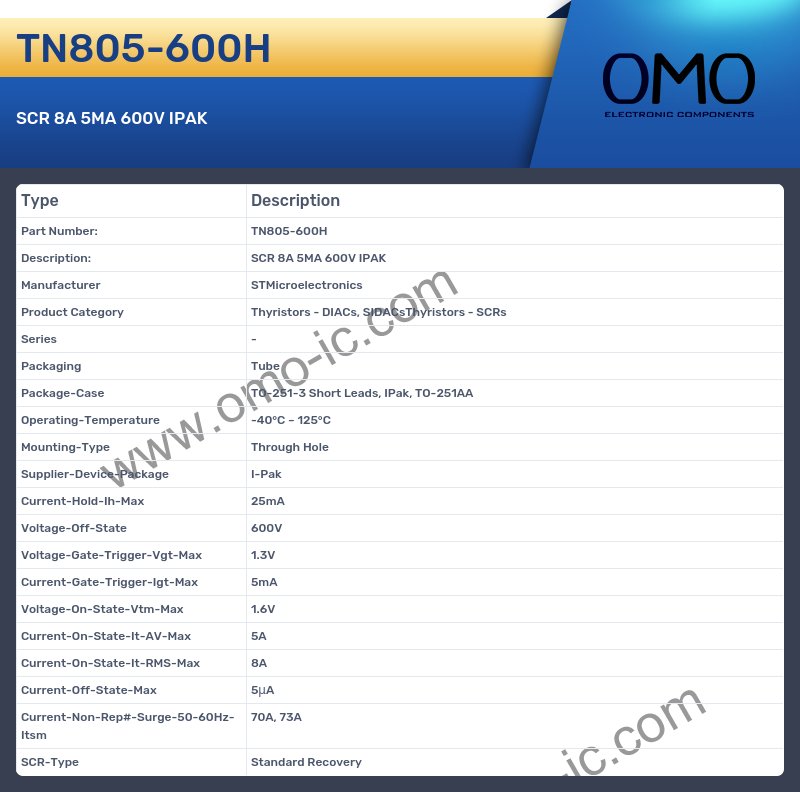

TN805-600H Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series -
• Packaging Tube
• Package-Case TO-251-3 Short Leads, IPak, TO-251AA
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package I-Pak
• Current-Hold-Ih-Max 25mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 5mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 5A
• Current-On-State-It-RMS-Max 8A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 70A, 73A
• SCR-Type Standard Recovery
