TPD4S009DBVR

TPD4S009DBVR Overview

Product belongs to the TPD4S009 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOT-23-6 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Ethernet, HDMI applications for maximum usability Number of channels: 4 Channel Supplier device package: SOT-23-6 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 9V. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 25 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Breakdown-Voltage: 9 V The Cd-Diode-Capacitance is 0.8 pF 5.5 V working voltage Polarity: Unidirectional 8 kV of Vesd-Voltage-ESD-Contact 9 kV Vesd-Voltage-ESD-Air-Gap

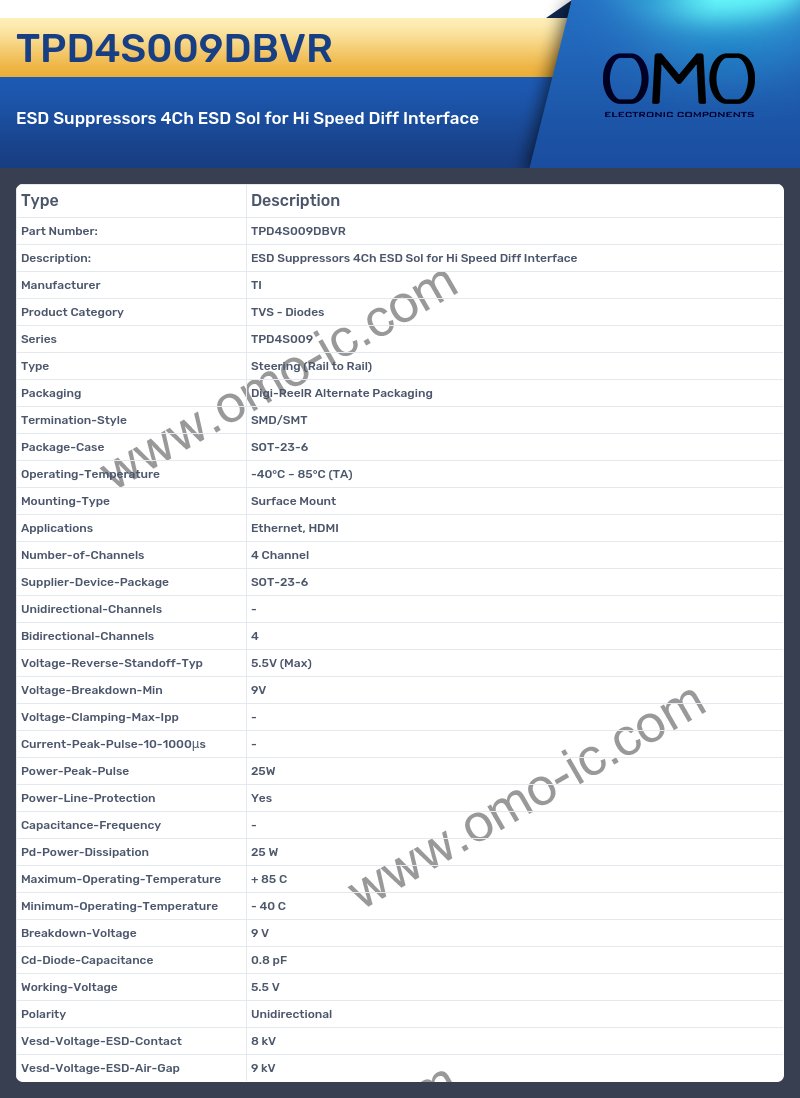

TPD4S009DBVR Image

TPD4S009DBVR Specifications

• Manufacturer TI
• Product Category TVS - Diodes
• Series TPD4S009
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Ethernet, HDMI
• Number-of-Channels 4 Channel
• Supplier-Device-Package SOT-23-6
• Unidirectional-Channels -
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 9V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 25W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 9 V
• Cd-Diode-Capacitance 0.8 pF
• Working-Voltage 5.5 V
• Polarity Unidirectional
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 9 kV
