TPS2061CDGN

TPS2061CDGN Overview

Product belongs to the TPS2061C series. Tube Alternate Packaging is the packaging method for this product Weight of 0.000861 oz SMD/SMT Mounting-Style HVSSOP-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-MSOP-PowerPad The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 86 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Output current: 1 A Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Max on-resistance of 86 mOhms Maximum off time: 2 ms This product's 1.8 A feature is adjustable. Maximum on-time: 1.8 ms

TPS2061CDGN Image

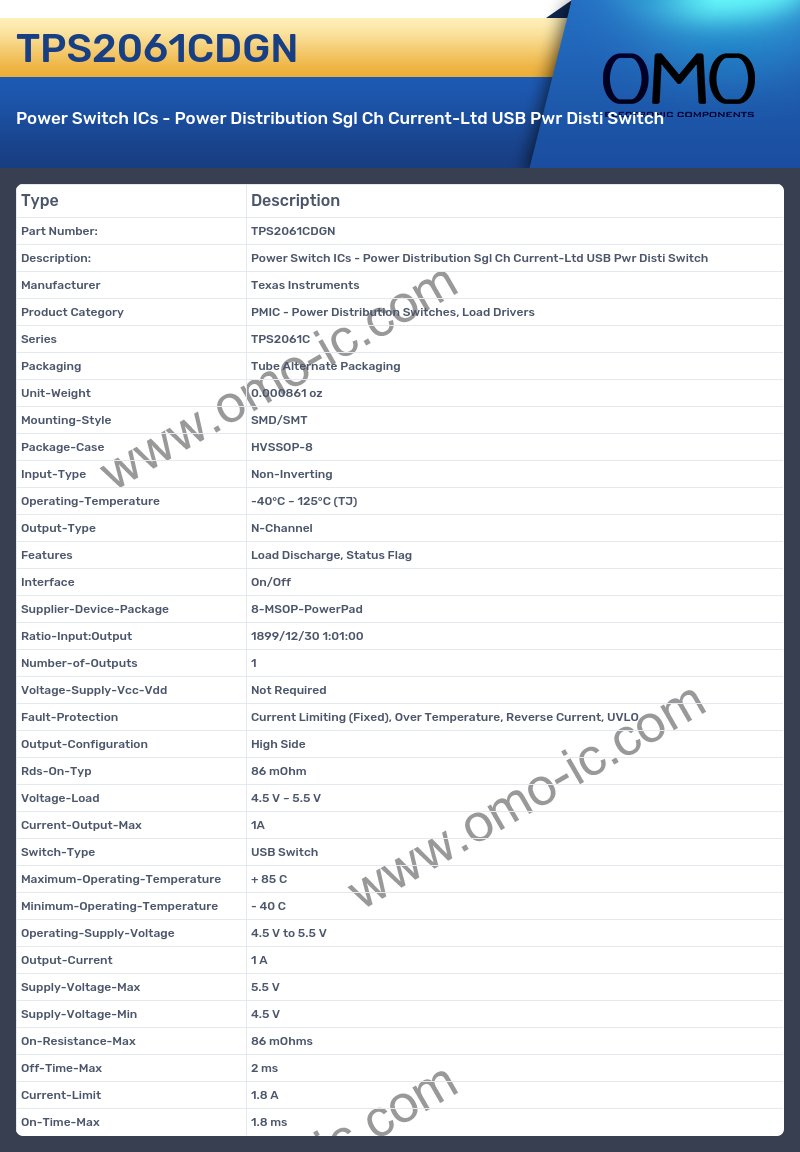

TPS2061CDGN Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2061C
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000861 oz
• Mounting-Style SMD/SMT
• Package-Case HVSSOP-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Load Discharge, Status Flag
• Interface On/Off
• Supplier-Device-Package 8-MSOP-PowerPad
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
• Output-Configuration High Side
• Rds-On-Typ 86 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 1A
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Output-Current 1 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• On-Resistance-Max 86 mOhms
• Off-Time-Max 2 ms
• Current-Limit 1.8 A
• On-Time-Max 1.8 ms
