TPS2105D

TPS2105D Overview

Product belongs to the TPS2105 series. Type: Source Selector Switch Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile Handheld/Mobile Devices applications for maximum usability Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-SOIC The Ratio-Input:Output for this product is 1899/12/30 2:01:00. This product has a 18μA of 200μA. Number-of-Outputs: 1 Output This product has Yes. Our product delivers a 500mA, 100mA of 50mA for efficient power management. This product uses an N and P-Channel FET-Type transistor. The - is 400ns. The - of this product is 300ns. Power-off control: 568 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. Output current: 500 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Max on-resistance of 1.3 Ohms Maximum off time: 6 us (Typ) Maximum on-time: 340 us (Typ)

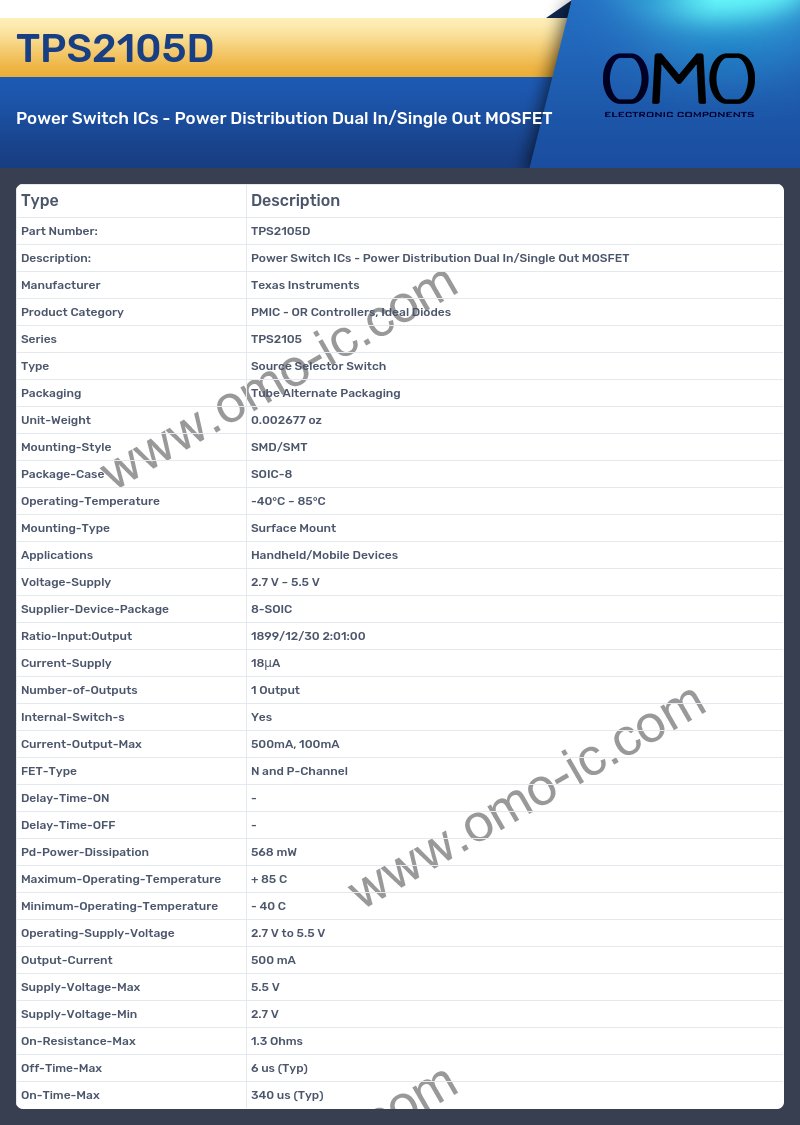

TPS2105D Image

TPS2105D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - OR Controllers, Ideal Diodes
• Series TPS2105
• Type Source Selector Switch
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Applications Handheld/Mobile Devices
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Ratio-Input:Output 1899/12/30 2:01:00
• Current-Supply 18μA
• Number-of-Outputs 1 Output
• Internal-Switch-s Yes
• Current-Output-Max 500mA, 100mA
• FET-Type N and P-Channel
• Delay-Time-ON -
• Delay-Time-OFF -
• Pd-Power-Dissipation 568 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Output-Current 500 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 1.3 Ohms
• Off-Time-Max 6 us (Typ)
• On-Time-Max 340 us (Typ)
