TPS2201IDBR

TPS2201IDBR Overview

Product belongs to the TPS2201 series. This product is categorized as PCMCIA Switches Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007676 oz SMD/SMT Mounting-Style SSOP-30 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: - Interface: Parallel Supplier device package: 30-SSOP The Ratio-Input:Output for this product is 1899/12/30 3:04:00. Number-of-Outputs: 4 Supply Voltage: 4.75 V ~ 5.25 V The High Side. The 160 mOhm (Max). Voltage-Load range is 3.3V, 5V, 12V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is PCMCIA Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Max on-resistance of 225 mOhms

TPS2201IDBR Image

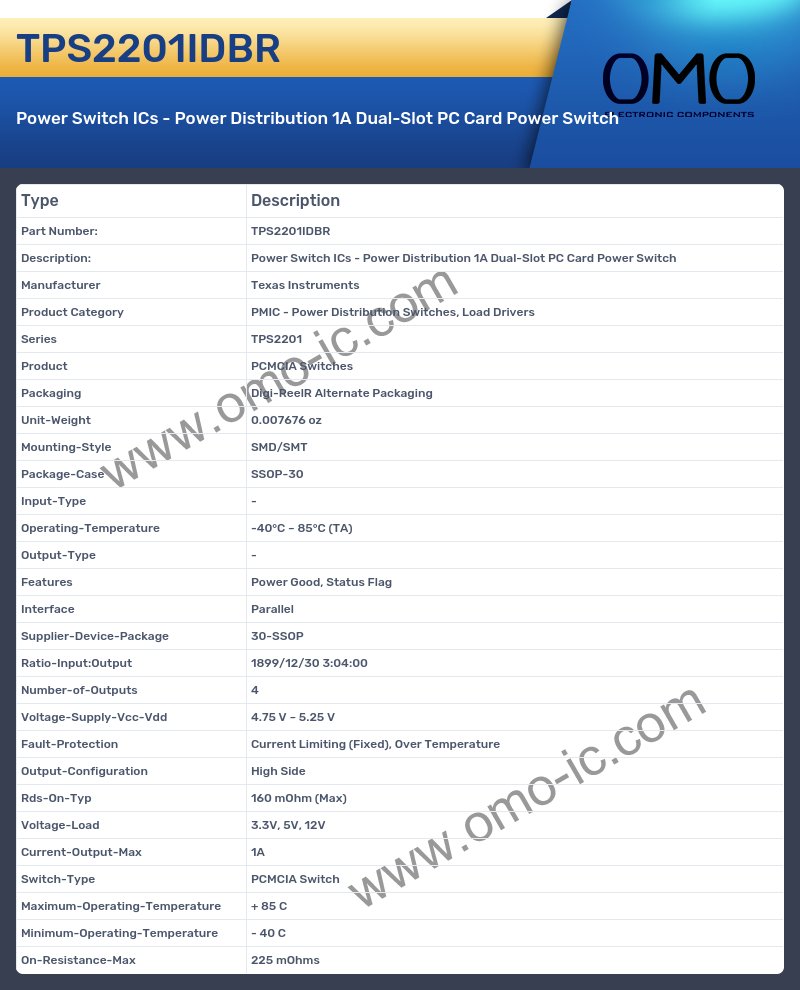

TPS2201IDBR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2201
• Product PCMCIA Switches
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007676 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-30
• Input-Type -
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type -
• Features Power Good, Status Flag
• Interface Parallel
• Supplier-Device-Package 30-SSOP
• Ratio-Input:Output 1899/12/30 3:04:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd 4.75 V ~ 5.25 V
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 160 mOhm (Max)
• Voltage-Load 3.3V, 5V, 12V
• Current-Output-Max 1A
• Switch-Type PCMCIA Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• On-Resistance-Max 225 mOhms
