TPS2236DAP

TPS2236DAP Overview

Product belongs to the TPS2236 series. This product is categorized as PCMCIA Switches Tube is the packaging method for this product Weight of 0.006388 oz SMD/SMT Mounting-Style HTSSOP-32 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: - Interface: - Supplier device package: 32-HTSSOP The Ratio-Input:Output for this product is 1899/12/30 1:02:00. Number-of-Outputs: 6 Supply Voltage: Not Required The High Side. The 45 mOhm. Voltage-Load range is 1.5V, 3.3V. Our product delivers a 1.3A of 50mA for efficient power management. The Switch-Type is ExpressCard Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Max on-resistance of 45 mOhms

TPS2236DAP Image

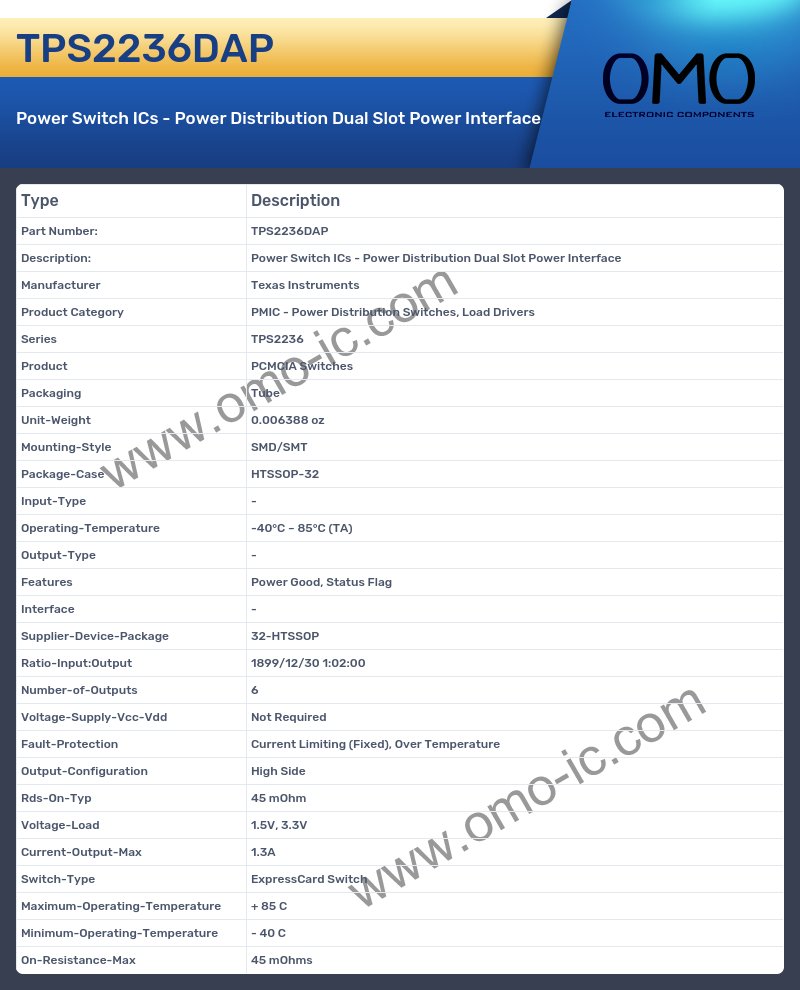

TPS2236DAP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2236
• Product PCMCIA Switches
• Packaging Tube
• Unit-Weight 0.006388 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-32
• Input-Type -
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type -
• Features Power Good, Status Flag
• Interface -
• Supplier-Device-Package 32-HTSSOP
• Ratio-Input:Output 1899/12/30 1:02:00
• Number-of-Outputs 6
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 45 mOhm
• Voltage-Load 1.5V, 3.3V
• Current-Output-Max 1.3A
• Switch-Type ExpressCard Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• On-Resistance-Max 45 mOhms
