TPS2543RTET

TPS2543RTET Overview

Product belongs to the TPS2543 series. This product is categorized as USB Current Limited Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 16-WQFN (3x3) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 73 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 3A of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Output current: 2.5 A The TPS2543EVM-064. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Max on-resistance of 120 mOhms This product's 0.25 A to 2.7 A feature is adjustable.

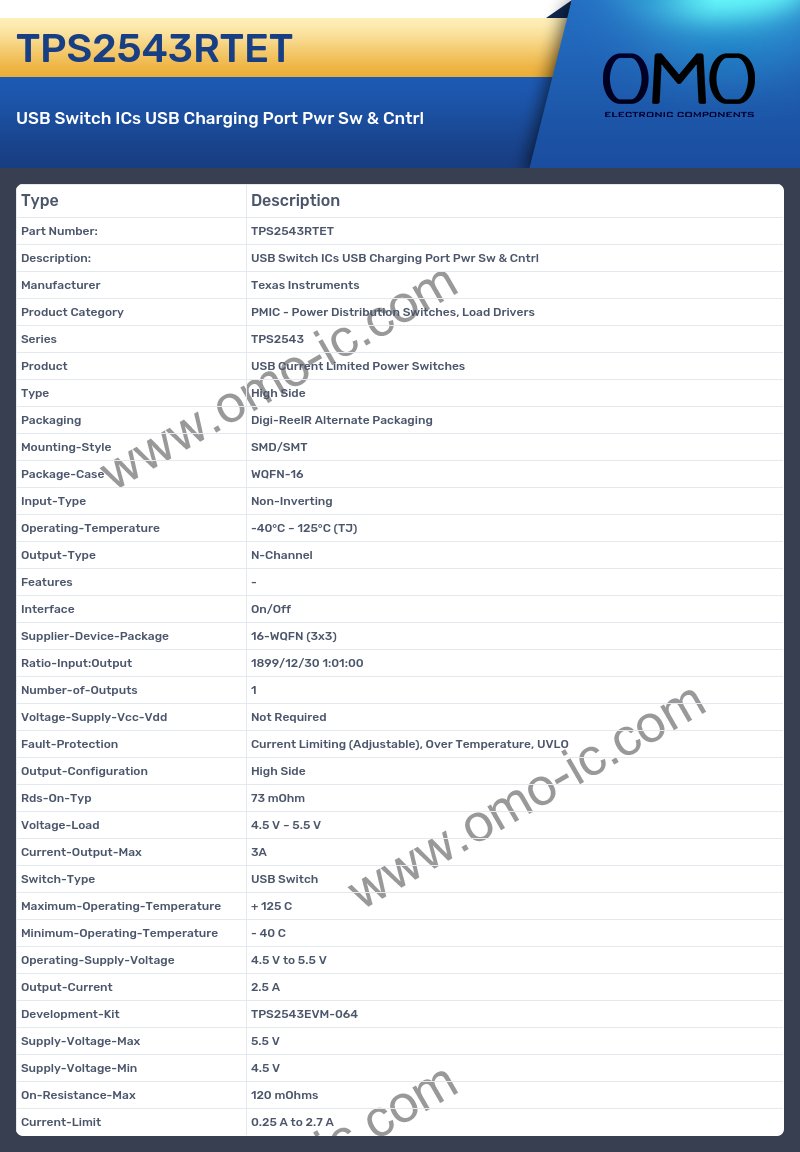

TPS2543RTET Image

TPS2543RTET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2543
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 16-WQFN (3x3)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 73 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 3A
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Output-Current 2.5 A
• Development-Kit TPS2543EVM-064
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• On-Resistance-Max 120 mOhms
• Current-Limit 0.25 A to 2.7 A
