TPS54560DDAR

TPS54560DDAR Overview

Product belongs to the Eco-Mode series. Type: Step-Down Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications HSOP-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck, Split Rail feedback This product features 'Frequency-Switching' at 100kHz ~ 2.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 60V. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 58.8 V Input Voltage Range: 4.5 V to 60 V Maximum Input Voltage: 60 V Output current: 5 A Switching frequency is 100 kHz to 2.5 MHz The product's 4.5 V is 5.1 V. The TPS54560EVM-515. Minimum supply voltage is 4.5 V

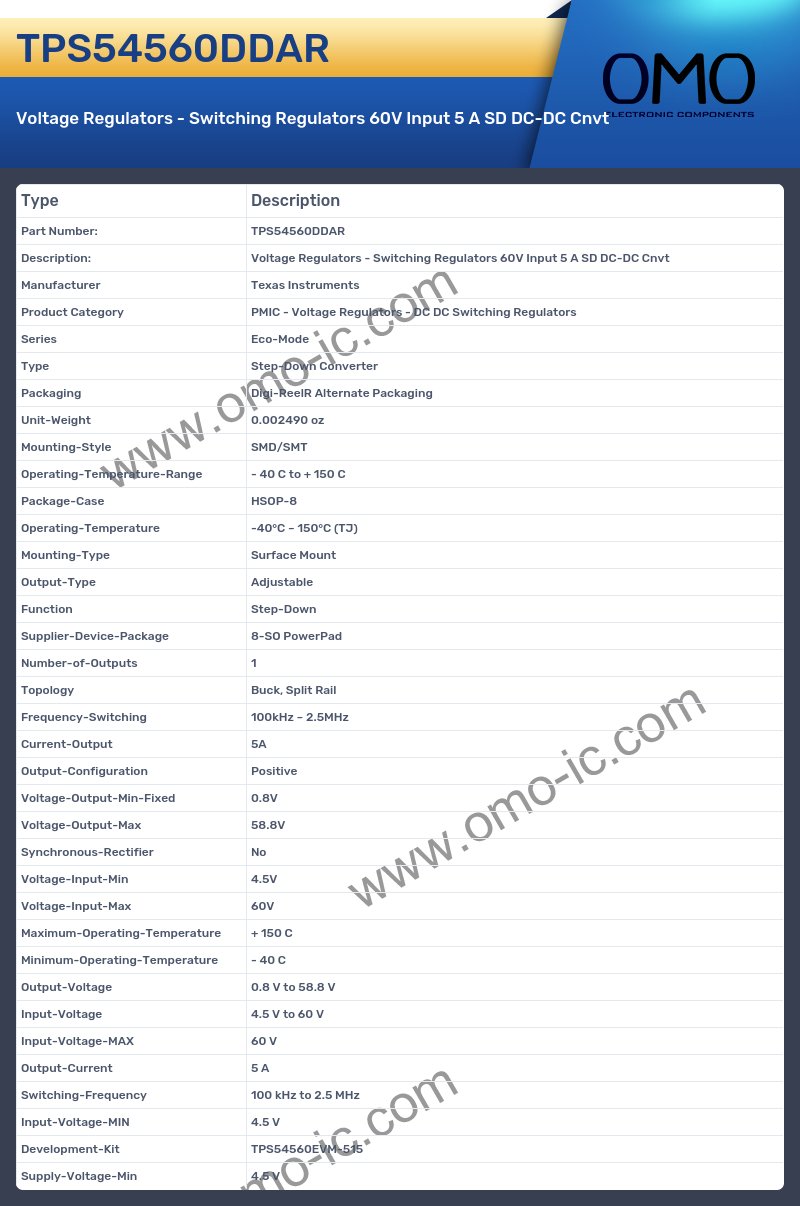

TPS54560DDAR Image

TPS54560DDAR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series Eco-Mode
• Type Step-Down Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case HSOP-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck, Split Rail
• Frequency-Switching 100kHz ~ 2.5MHz
• Current-Output 5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 58.8V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 60V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 58.8 V
• Input-Voltage 4.5 V to 60 V
• Input-Voltage-MAX 60 V
• Output-Current 5 A
• Switching-Frequency 100 kHz to 2.5 MHz
• Input-Voltage-MIN 4.5 V
• Development-Kit TPS54560EVM-515
• Supply-Voltage-Min 4.5 V
