TPS70345MPWPREP

TPS70345MPWPREP Overview

Product belongs to the TPS70345-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 98100 mg SMD/SMT Mounting-Style 24-TSSOP (0.173", 4.40mm Width) Exposed Pad Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 24-HTSSOP 2.7 V ~ 6 V voltage input Number-of-Outputs: 2 Output Output voltage: 3.3V, 1.2V Positive Fixed regulator topology The product has 2 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 3.3 V 1.2 V Maximum Input Voltage: 6 V Output current: 1 A The product's + 2.7 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. This product is also known as V62/06616-01XE and can be referred to by either part number. Input bias current of 185 uA This product has a 250 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.24 V . The 0.160 V at 1 A. The maximum 255 mV at 1 A is 360 mV. This product's 0.1 % is 0.01 %/V.

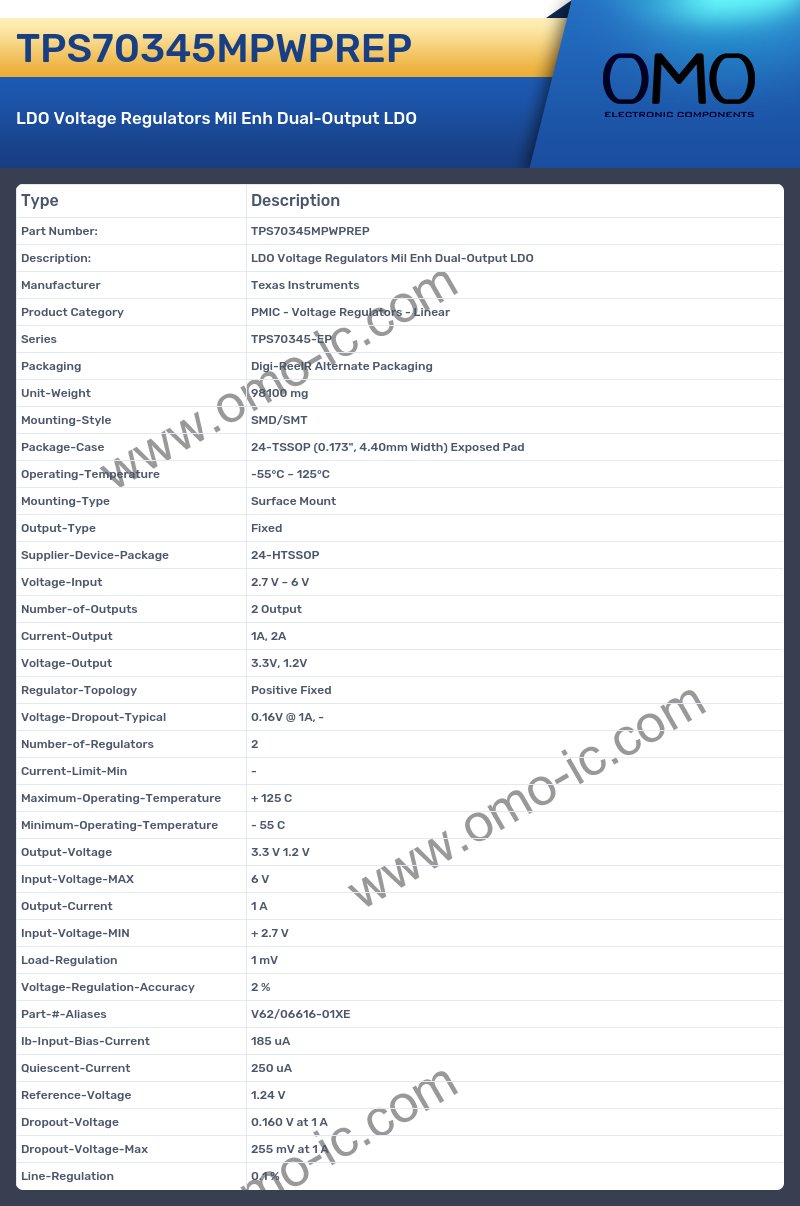

TPS70345MPWPREP Image

TPS70345MPWPREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS70345-EP
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 98100 mg
• Mounting-Style SMD/SMT
• Package-Case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 24-HTSSOP
• Voltage-Input 2.7 V ~ 6 V
• Number-of-Outputs 2 Output
• Current-Output 1A, 2A
• Voltage-Output 3.3V, 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.16V @ 1A, -
• Number-of-Regulators 2
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 3.3 V 1.2 V
• Input-Voltage-MAX 6 V
• Output-Current 1 A
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Part-#-Aliases V62/06616-01XE
• Ib-Input-Bias-Current 185 uA
• Quiescent-Current 250 uA
• Reference-Voltage 1.24 V
• Dropout-Voltage 0.160 V at 1 A
• Dropout-Voltage-Max 255 mV at 1 A
• Line-Regulation 0.1 %
