TPS72012DRVR

TPS72012DRVR Overview

Product belongs to the TPS72012 series. This product is categorized as LDO Regulator Type: Linear Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-SON (2x2) Up to 4.5V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 1580 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V 38 uA is 92 nA. Maximum Input Voltage: 4.5 V Output current: 350 mA The product's 1.1 V is 5.1 V. Load regulation is - 15 uV / mA. The voltage regulation accuracy of this product is 2 %. This product is also known as HPA01044DRVR and can be referred to by either part number. The maximum 200 mV is 360 mV. This product's 16 uV/V is 0.01 %/V. The product's 85 dB is -20 dB.

TPS72012DRVR Image

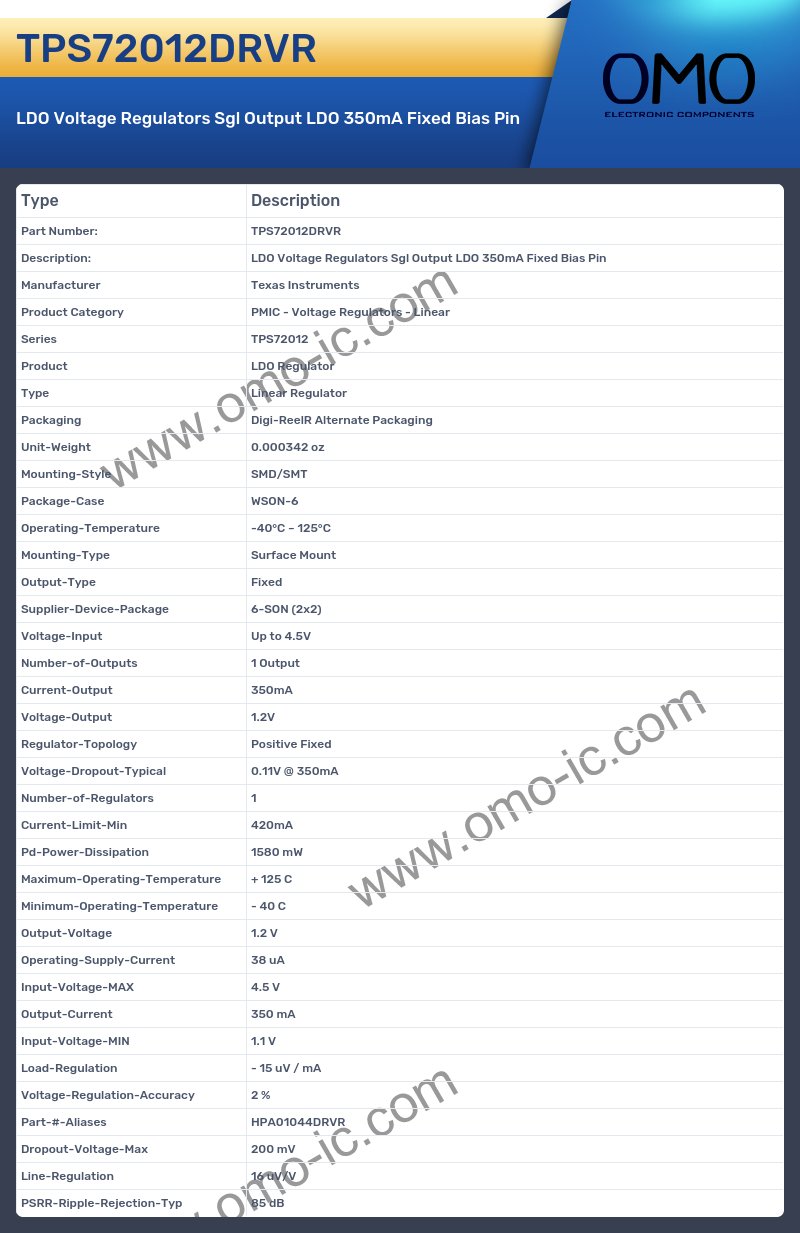

TPS72012DRVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72012
• Product LDO Regulator
• Type Linear Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-SON (2x2)
• Voltage-Input Up to 4.5V
• Number-of-Outputs 1 Output
• Current-Output 350mA
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.11V @ 350mA
• Number-of-Regulators 1
• Current-Limit-Min 420mA
• Pd-Power-Dissipation 1580 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Operating-Supply-Current 38 uA
• Input-Voltage-MAX 4.5 V
• Output-Current 350 mA
• Input-Voltage-MIN 1.1 V
• Load-Regulation - 15 uV / mA
• Voltage-Regulation-Accuracy 2 %
• Part-#-Aliases HPA01044DRVR
• Dropout-Voltage-Max 200 mV
• Line-Regulation 16 uV/V
• PSRR-Ripple-Rejection-Typ 85 dB
