TPS7201QD

TPS7201QD Overview

Product belongs to the TPS7201 series. Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC 3 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 9.75 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.725 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 9.75 V Maximum Input Voltage: 10 V Output current: 250 mA The product's + 3 V is 5.1 V. Load regulation is 27 mV. The voltage regulation accuracy of this product is 3 %. Input bias current of 180 uA This product has a 300 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.188 V . The 0.19 V at 250 mA. The maximum 140 mV is 360 mV. This product's 23 mV is 0.01 %/V.

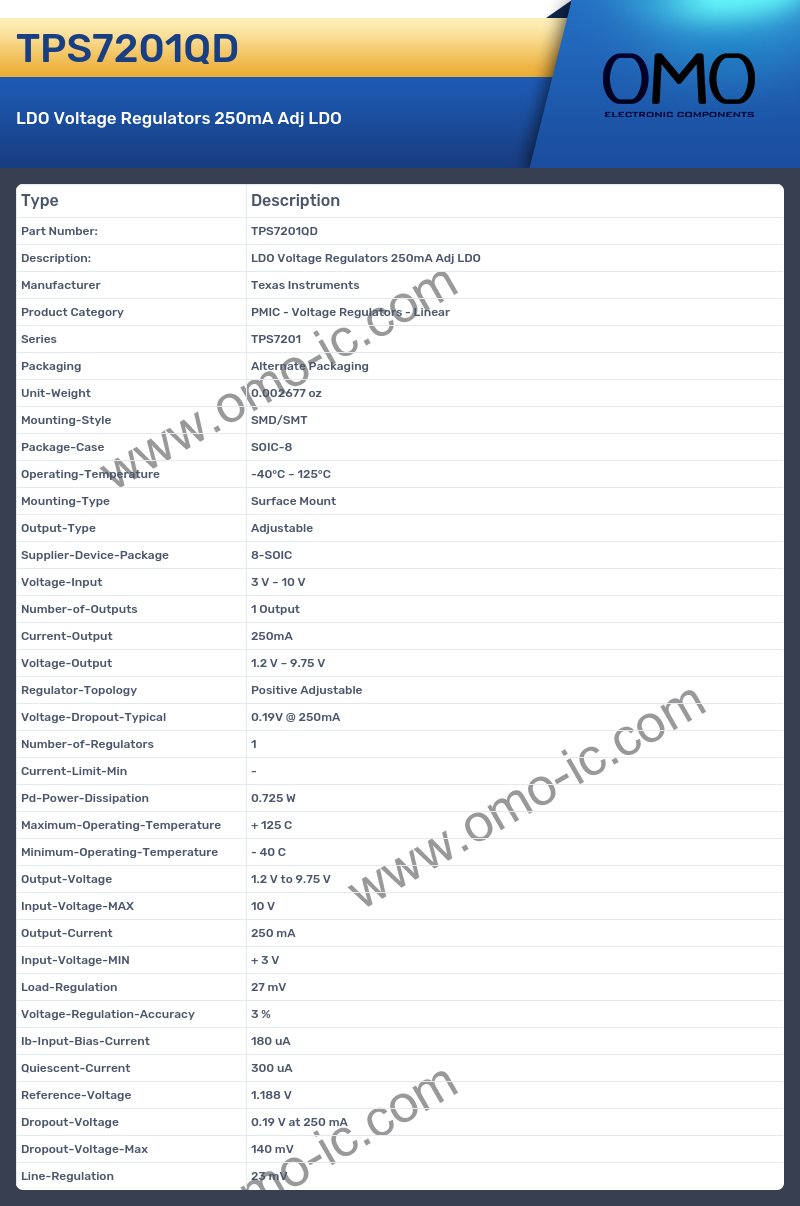

TPS7201QD Image

TPS7201QD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS7201
• Packaging Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SOIC
• Voltage-Input 3 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 1.2 V ~ 9.75 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.19V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.725 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 9.75 V
• Input-Voltage-MAX 10 V
• Output-Current 250 mA
• Input-Voltage-MIN + 3 V
• Load-Regulation 27 mV
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 180 uA
• Quiescent-Current 300 uA
• Reference-Voltage 1.188 V
• Dropout-Voltage 0.19 V at 250 mA
• Dropout-Voltage-Max 140 mV
• Line-Regulation 23 mV
