TPS73601DRBR

TPS73601DRBR Overview

Product belongs to the TPS73601 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000847 oz SMD/SMT Mounting-Style VSON-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SON Exposed Pad (3x3) 1.7 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 2.5 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 400 mA The product's + 1.7 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 0.5 %. The TPS73601DRBEVM-518. Input bias current of 300 uA This product has a 550 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.2 V . The 0.075 V at 400 mA. The maximum 200 mV at 400 mA is 360 mV. This product's 0.01 % / V is 0.01 %/V.

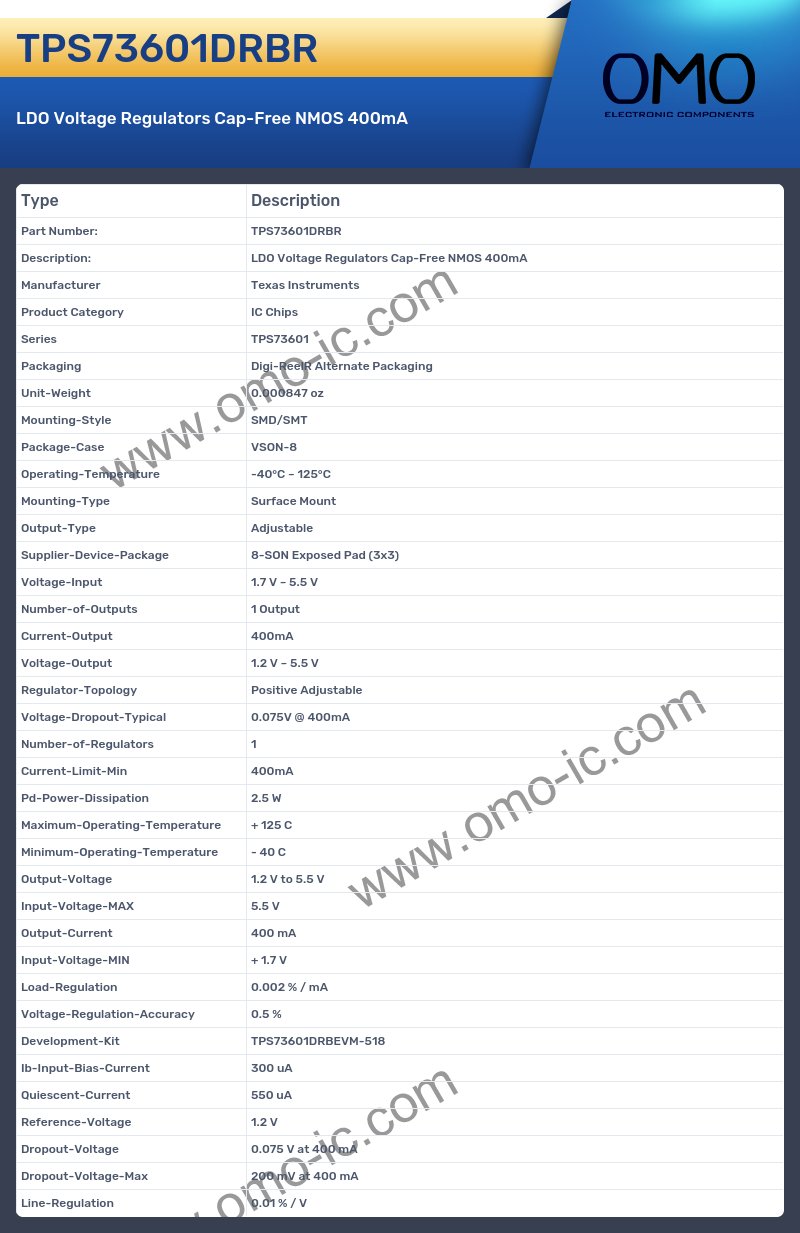

TPS73601DRBR Image

TPS73601DRBR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series TPS73601
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000847 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SON Exposed Pad (3x3)
• Voltage-Input 1.7 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 400mA
• Voltage-Output 1.2 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.075V @ 400mA
• Number-of-Regulators 1
• Current-Limit-Min 400mA
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 400 mA
• Input-Voltage-MIN + 1.7 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 0.5 %
• Development-Kit TPS73601DRBEVM-518
• Ib-Input-Bias-Current 300 uA
• Quiescent-Current 550 uA
• Reference-Voltage 1.2 V
• Dropout-Voltage 0.075 V at 400 mA
• Dropout-Voltage-Max 200 mV at 400 mA
• Line-Regulation 0.01 % / V
