| Mfr. #: | TPS77501DR |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | LDO Voltage Regulators Fast-Tran-Res 500-mA |
| 生命週期: | 製造商新產品 |
| 數據表: | TPS77501DR 數據表 |
Product belongs to the TPS77501 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.904 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 5.5 V Maximum Input Voltage: 10 V Output current: 500 mA The product's + 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA Reference voltage is 1.1834 V . The 0.169 V at 500 mA. This product's 0.01 % / V is 0.01 %/V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

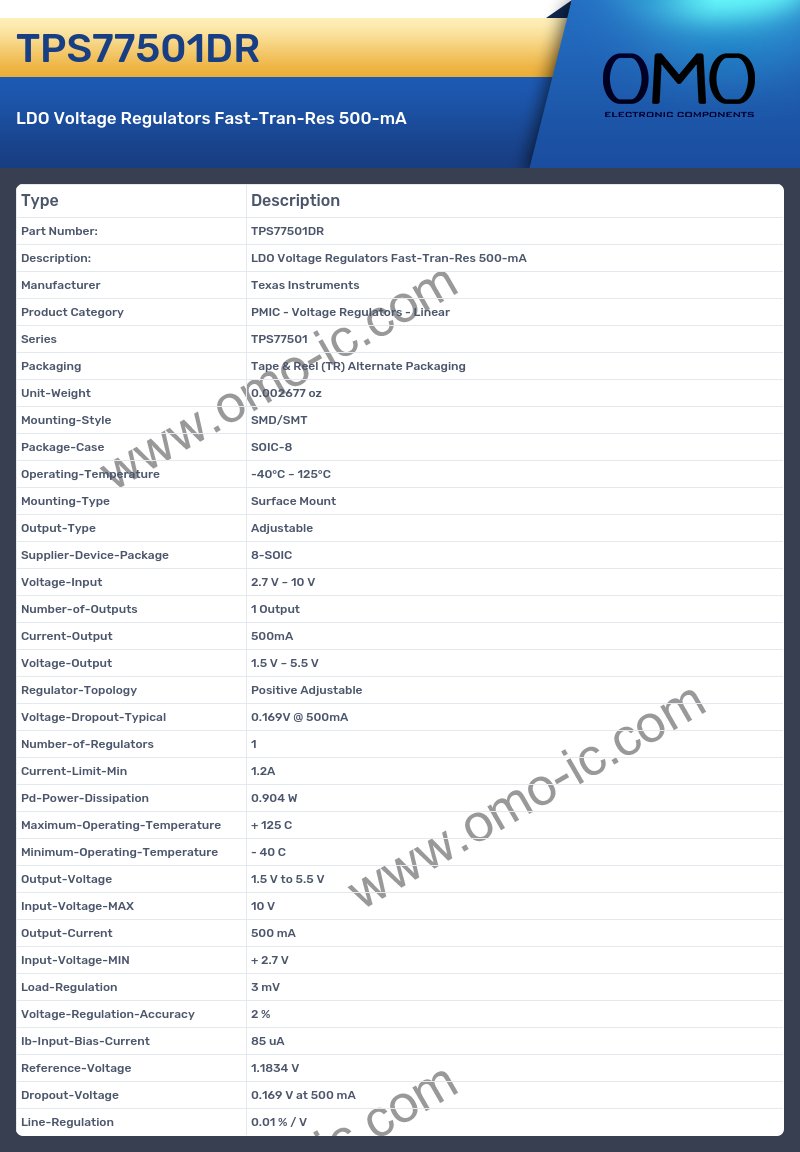

TPS77501DR Specifications
A: At what frequency does the Series?
Q: The product Series is TPS77501.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002677 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-8.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Adjustable.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-SOIC.
A: Is the cutoff frequency of the product Voltage-Input?
Q: Yes, the product's Voltage-Input is indeed 2.7 V ~ 10 V
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: Is the cutoff frequency of the product Voltage-Output?
Q: Yes, the product's Voltage-Output is indeed 1.5 V ~ 5.5 V
A: At what frequency does the Regulator-Topology?
Q: The product Regulator-Topology is Positive Adjustable.
A: Is the cutoff frequency of the product Number-of-Regulators?
Q: Yes, the product's Number-of-Regulators is indeed 1
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 0.904 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 1.5 V to 5.5 V.
A: Is the cutoff frequency of the product Input-Voltage-MAX?
Q: Yes, the product's Input-Voltage-MAX is indeed 10 V
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 500 mA
A: What is the Input-Voltage-MIN of the product?
Q: The Input-Voltage-MIN of the product is + 2.7 V.
A: Is the cutoff frequency of the product Load-Regulation?
Q: Yes, the product's Load-Regulation is indeed 3 mV
A: At what frequency does the Voltage-Regulation-Accuracy?
Q: The product Voltage-Regulation-Accuracy is 2 %.
A: What is the Ib-Input-Bias-Current of the product?
Q: The Ib-Input-Bias-Current of the product is 85 uA.
A: What is the Reference-Voltage of the product?
Q: The Reference-Voltage of the product is 1.1834 V.
A: What is the Dropout-Voltage of the product?
Q: The Dropout-Voltage of the product is 0.169 V at 500 mA.
A: What is the Line-Regulation of the product?
Q: The Line-Regulation of the product is 0.01 % / V.
