TS110-7UF

TS110-7UF Overview

Product belongs to the TS110-7 series. Digi-ReelR Alternate Packaging is the packaging method for this product DO-221AA, SMB Flat Leads Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: SMBflat-3L 2mA of Current-Hold-Ih-Max The Voltage-Off-State is 700V. Voltage-Gate-Trigger-Vgt-Max 800mV 100μA of Current-Gate-Trigger-Igt-Max Maximum 1.4V On-State Voltage Its 800mA Current-On-State-It-AV-Max 1.25A is the maximum Current-On-State-It-RMS. 1μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 25A, 27A for 50-60Hz Itsm. SCR-Type: Sensitive Gate;

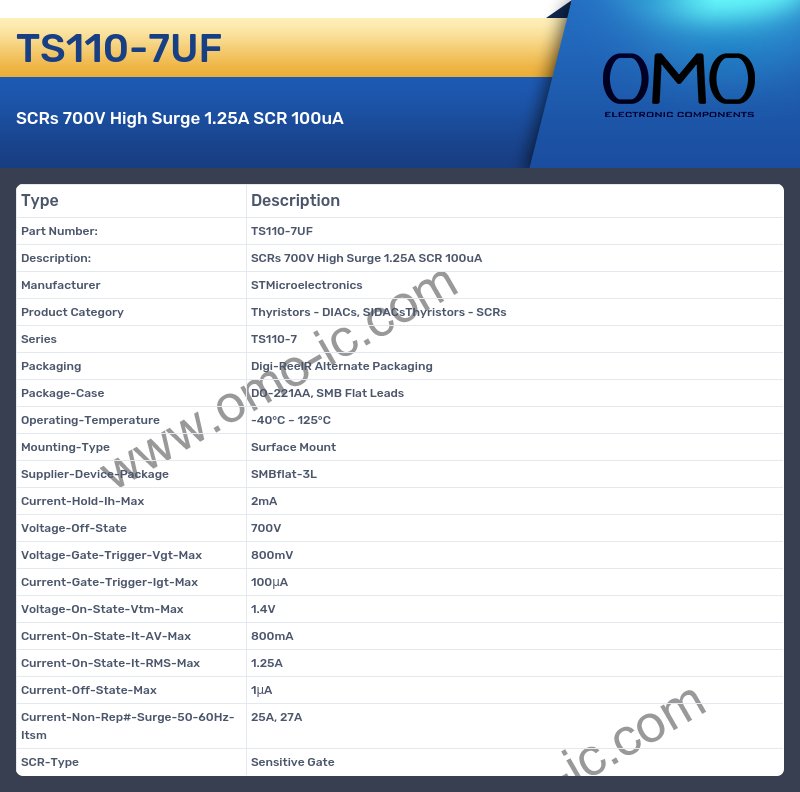

TS110-7UF Image

TS110-7UF Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series TS110-7
• Packaging Digi-ReelR Alternate Packaging
• Package-Case DO-221AA, SMB Flat Leads
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package SMBflat-3L
• Current-Hold-Ih-Max 2mA
• Voltage-Off-State 700V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 100μA
• Voltage-On-State-Vtm-Max 1.4V
• Current-On-State-It-AV-Max 800mA
• Current-On-State-It-RMS-Max 1.25A
• Current-Off-State-Max 1μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 25A, 27A
• SCR-Type Sensitive Gate
