TS3V340PWE4

TS3V340PWE4 Overview

Product belongs to the TS3V340 series. This product is categorized as Video Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Switch. Supplier device package: 16-TSSOP - is 8. Voltage supply source: Analog and digital Single Supply Configuration 4 x SPDT Circuit type: 4 x SPDT 6 Ohm maximum on-state resistance Voltage supply range: 3 V ~ 3.6 V This product has a 700nA of 200μA. The - 500 MHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V 3.5 ns is 23 microseconds. Single Supply supply type Max on-resistance of 6 Ohms Maximum off time: 7 ns 4 Switch switch functionality Maximum on-time: 7 ns The maximum switch voltage for this product is 3.3 V The 100 mA

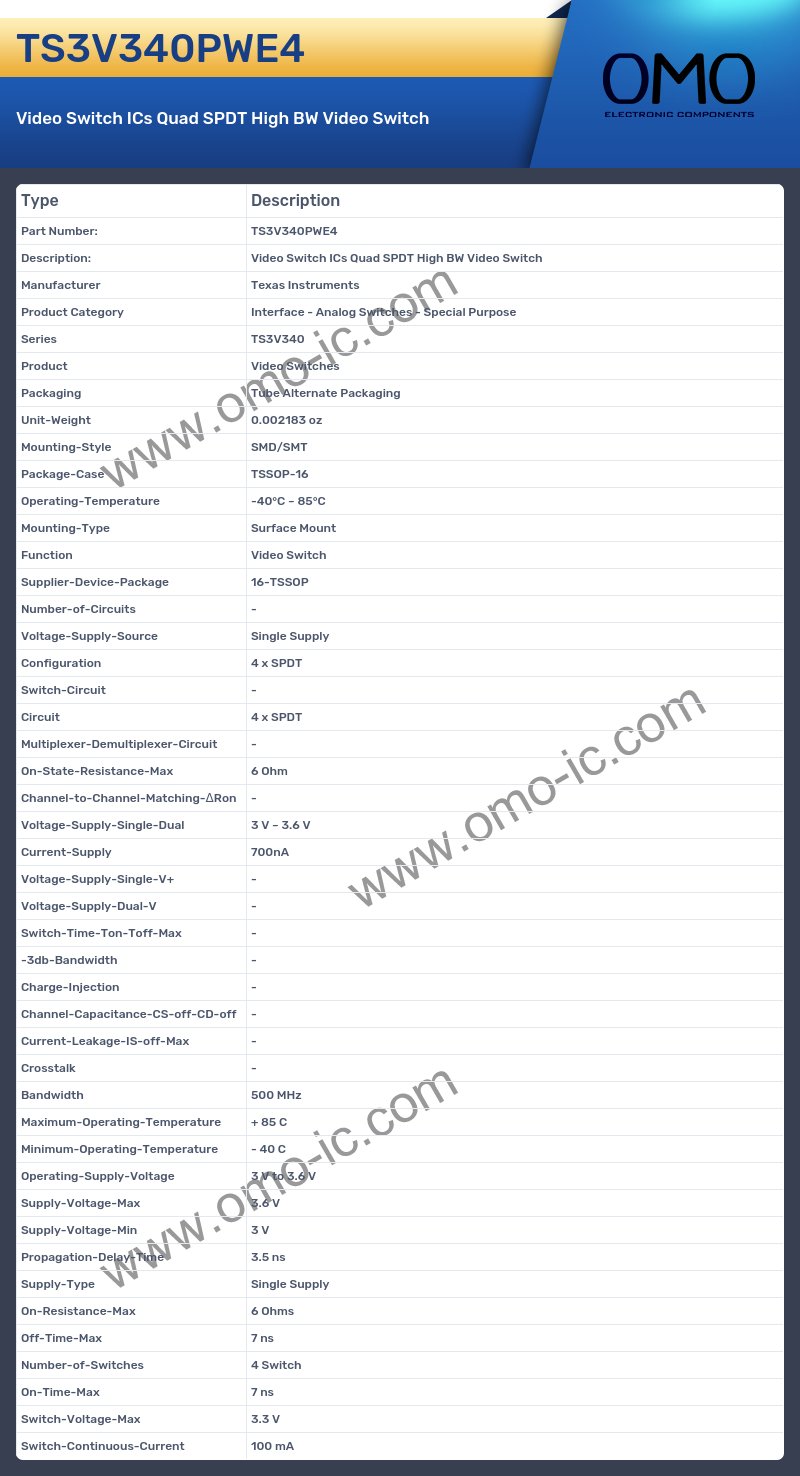

TS3V340PWE4 Image

TS3V340PWE4 Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches - Special Purpose
• Series TS3V340
• Product Video Switches
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Switch
• Supplier-Device-Package 16-TSSOP
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 4 x SPDT
• Switch-Circuit -
• Circuit 4 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 6 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 3 V ~ 3.6 V
• Current-Supply 700nA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 500 MHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 3.5 ns
• Supply-Type Single Supply
• On-Resistance-Max 6 Ohms
• Off-Time-Max 7 ns
• Number-of-Switches 4 Switch
• On-Time-Max 7 ns
• Switch-Voltage-Max 3.3 V
• Switch-Continuous-Current 100 mA
