TS7211BILT Overview

Product belongs to the TS7211 series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 1 Channel Supplier device package: SOT-23-5 Voltage supply range: 2.7 V ~ 10 V 1 element 12μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 500 ns response time Power-off control: No Shutdown Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12 uA is 92 nA. Maximum supply voltage of 10 V Minimum supply voltage is 2.7 V Input bias current of 600 pA The 18 mV. The 300 nA. The Negative Rail - 0.3 V to Positive Rail - 0.3 V. 2.5 mA

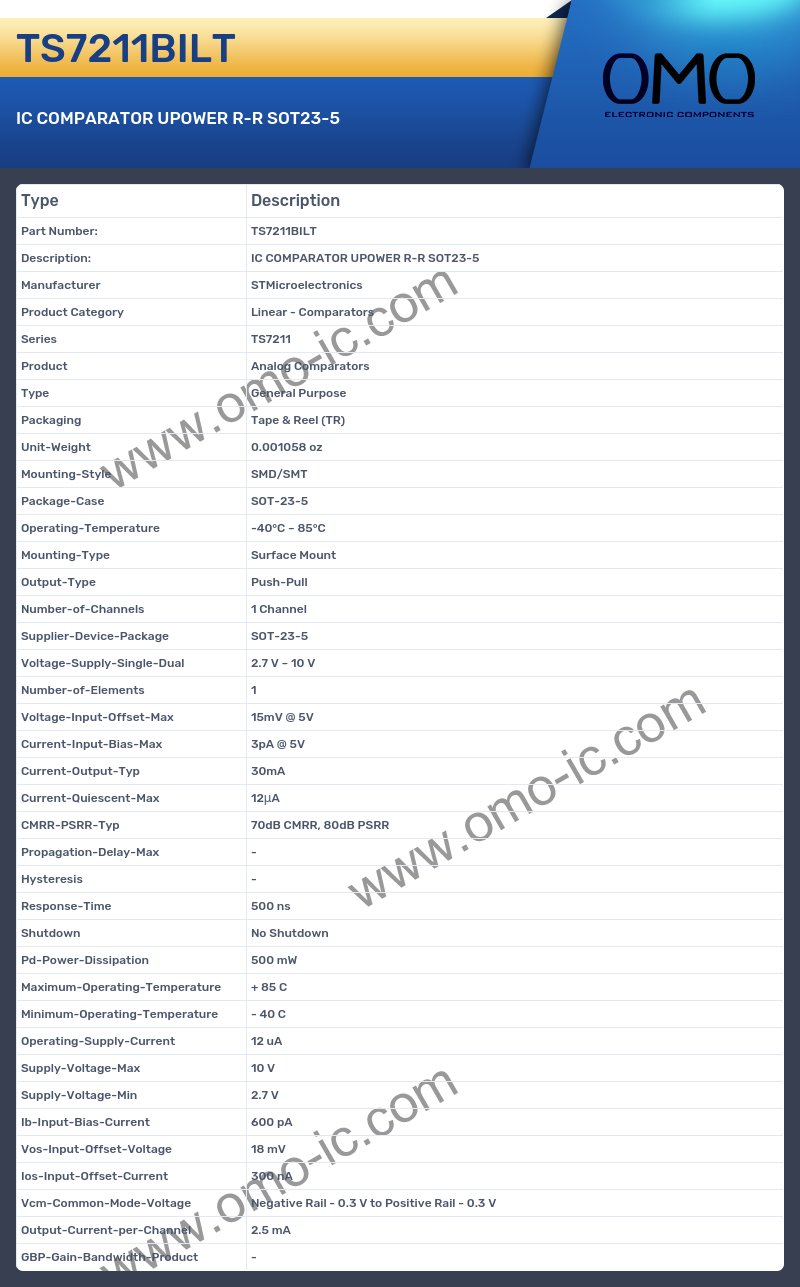

TS7211BILT Image

TS7211BILT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series TS7211
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR)
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Voltage-Supply-Single-Dual 2.7 V ~ 10 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 15mV @ 5V
• Current-Input-Bias-Max 3pA @ 5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 12μA
• CMRR-PSRR-Typ 70dB CMRR, 80dB PSRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 500 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 uA
• Supply-Voltage-Max 10 V
• Supply-Voltage-Min 2.7 V
• Ib-Input-Bias-Current 600 pA
• Vos-Input-Offset-Voltage 18 mV
• Ios-Input-Offset-Current 300 nA
• Vcm-Common-Mode-Voltage Negative Rail - 0.3 V to Positive Rail - 0.3 V
• Output-Current-per-Channel 2.5 mA
• GBP-Gain-Bandwidth-Product -
