TS7221AI1LT

TS7221AI1LT Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT23-5 Operational temperature range: -40°C ~ 105°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 1 Channel Supplier device package: SOT-23-5 Voltage supply range: 2.7 V ~ 10 V 1 element 16μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 500 ns response time Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 6 uA is 92 nA. Maximum supply voltage of 10 V Minimum supply voltage is 2.7 V General Purpose comparator type Input bias current of 300 pA The 7 mV. The 150 pA. 0.5 us is 23 microseconds. The 80 dB. 30 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB.

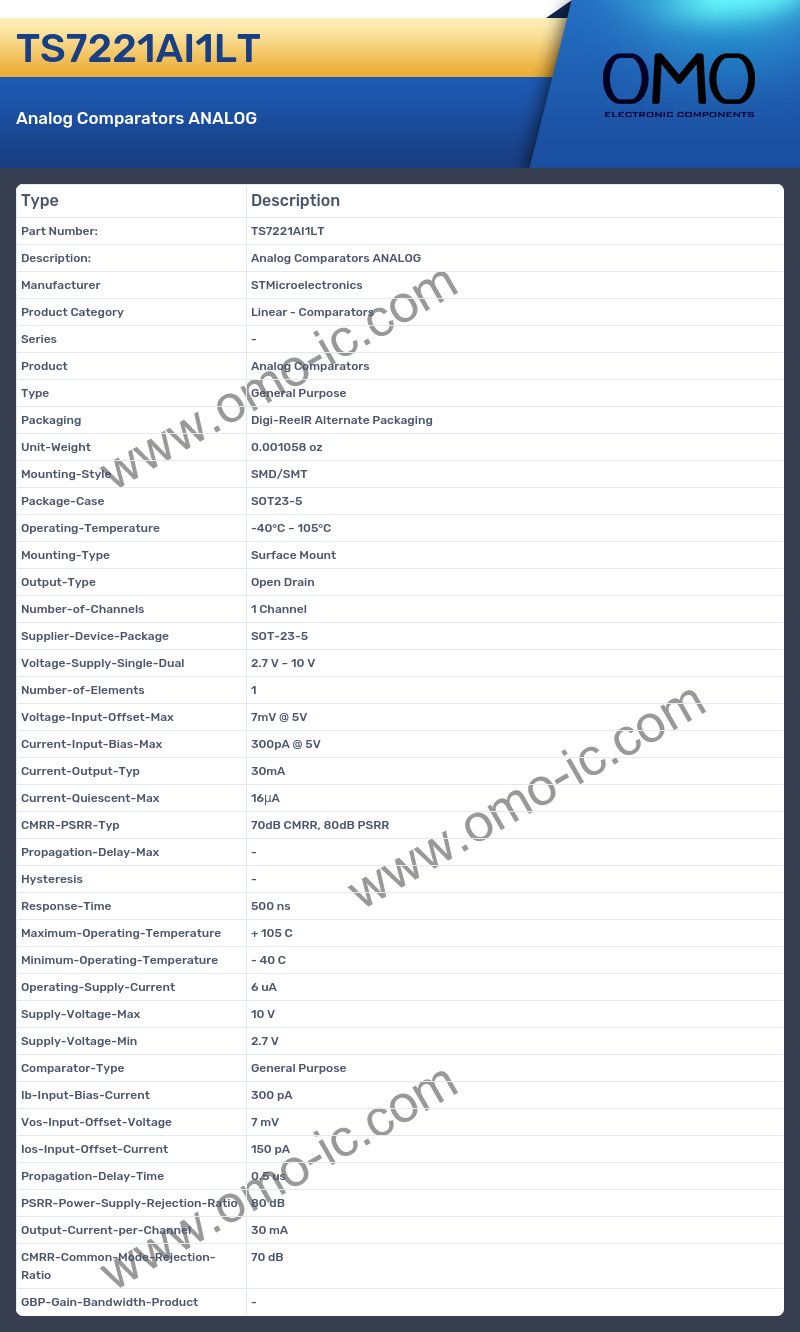

TS7221AI1LT Image

TS7221AI1LT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT23-5
• Operating-Temperature -40°C ~ 105°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Voltage-Supply-Single-Dual 2.7 V ~ 10 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7mV @ 5V
• Current-Input-Bias-Max 300pA @ 5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 16μA
• CMRR-PSRR-Typ 70dB CMRR, 80dB PSRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 500 ns
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 uA
• Supply-Voltage-Max 10 V
• Supply-Voltage-Min 2.7 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 300 pA
• Vos-Input-Offset-Voltage 7 mV
• Ios-Input-Offset-Current 150 pA
• Propagation-Delay-Time 0.5 us
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Output-Current-per-Channel 30 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product -
