TS820-600B-TR

TS820-600B-TR Overview

Product belongs to the TS820 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: D-Pak 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 800mV 200μA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 5A Current-On-State-It-AV-Max 8A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 70A, 73A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 600 V Rated Repetitive Off-State Voltage VDRM; 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.2 mA; 73 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 1.6 V

TS820-600B-TR Image

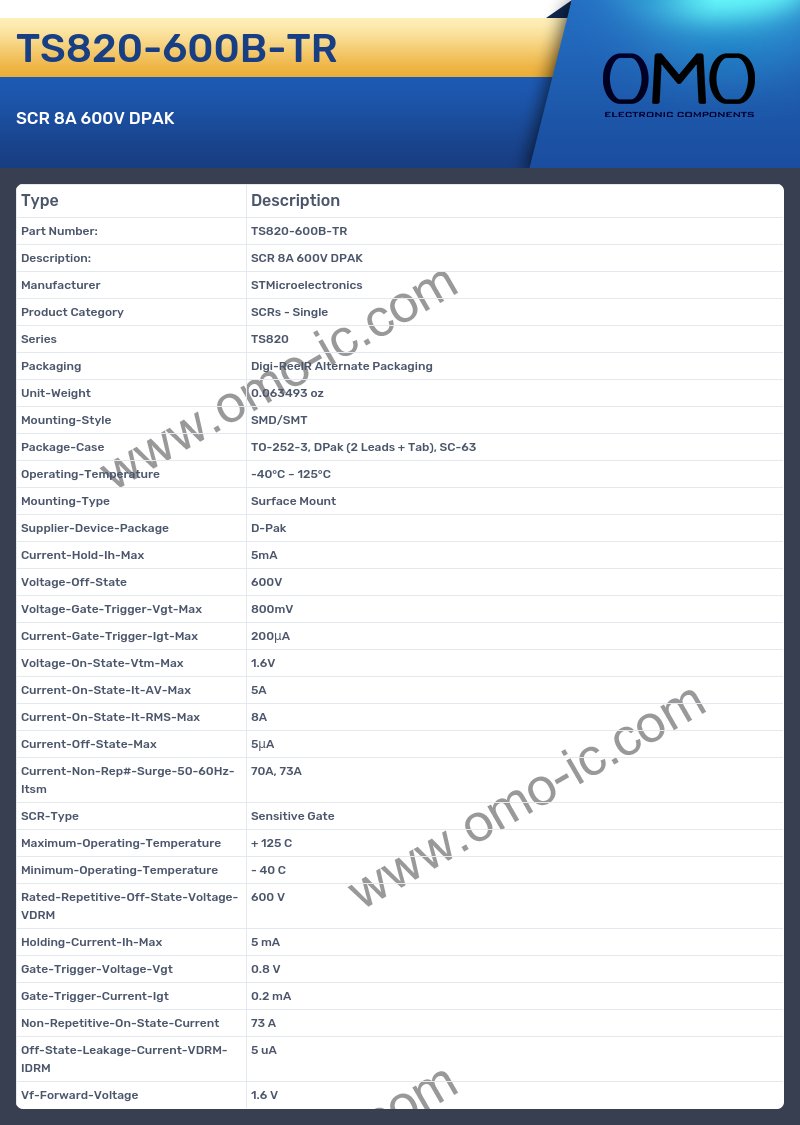

TS820-600B-TR Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TS820
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.063493 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 200μA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 5A
• Current-On-State-It-RMS-Max 8A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 70A, 73A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 5 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 0.2 mA
• Non-Repetitive-On-State-Current 73 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• Vf-Forward-Voltage 1.6 V
