UC2872DWTR

UC2872DWTR Overview

Product belongs to the UC2872 series. This product is categorized as Ballast Controller Type: Ballast Controller Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 This product's 57kHz ~ 78kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 24 V This product has a 6mA of 200μA. CCFL and Neon Lamps display type Dimming control is done through No communication. Power-off control: 1 W Maximum operating temperature of + 85 C Minimum operating temperature: 0 C This product operates at a 24 V supply voltage for reliable performance. 6 mA is 92 nA. The operating frequency is 200 kHz. Maximum output current is 20 mA

UC2872DWTR Image

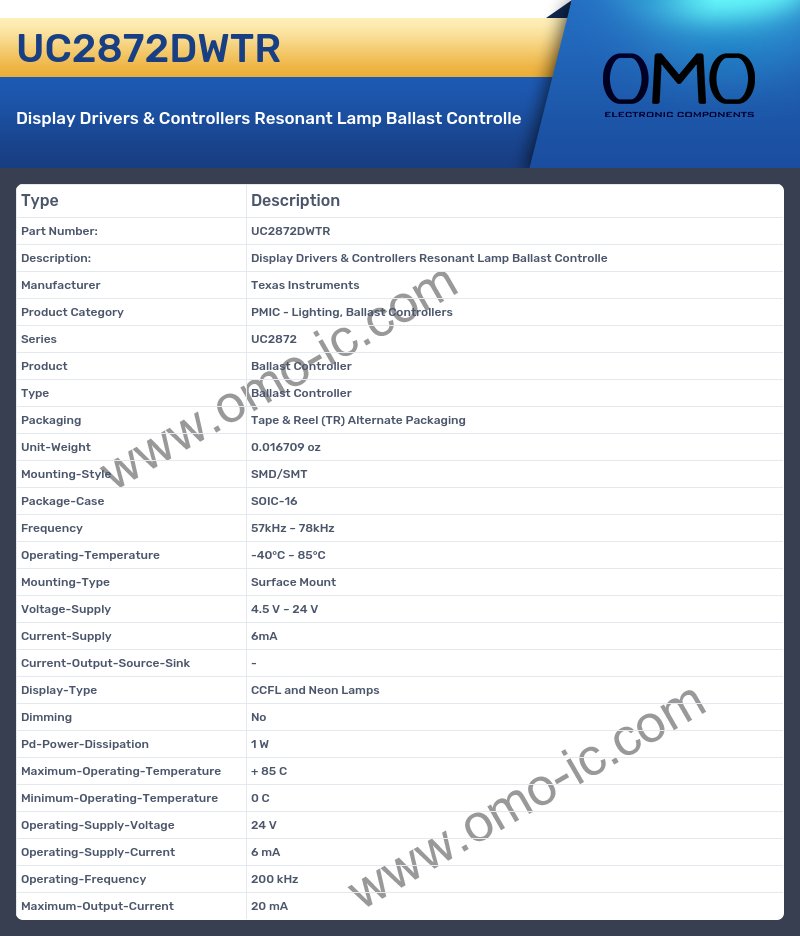

UC2872DWTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Lighting, Ballast Controllers
• Series UC2872
• Product Ballast Controller
• Type Ballast Controller
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Frequency 57kHz ~ 78kHz
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 24 V
• Current-Supply 6mA
• Current-Output-Source-Sink -
• Display-Type CCFL and Neon Lamps
• Dimming No
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 24 V
• Operating-Supply-Current 6 mA
• Operating-Frequency 200 kHz
• Maximum-Output-Current 20 mA
