UC2875DWPTR

UC2875DWPTR Overview

Product belongs to the UC2875 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.027937 oz SMD/SMT Mounting-Style SOIC-28 Wide Operational temperature range: -25°C ~ 85°C (TA) * mounting type Supplier device package: 28-SOIC Number-of-Outputs: 4 Output Output-Isolation: Non-Isolated This product has -. Topology: Full-Bridge feedback Supply Voltage: 9.5 V ~ 20 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start, Sync function. Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Output current: 500 mA Switching frequency is 1000 kHz

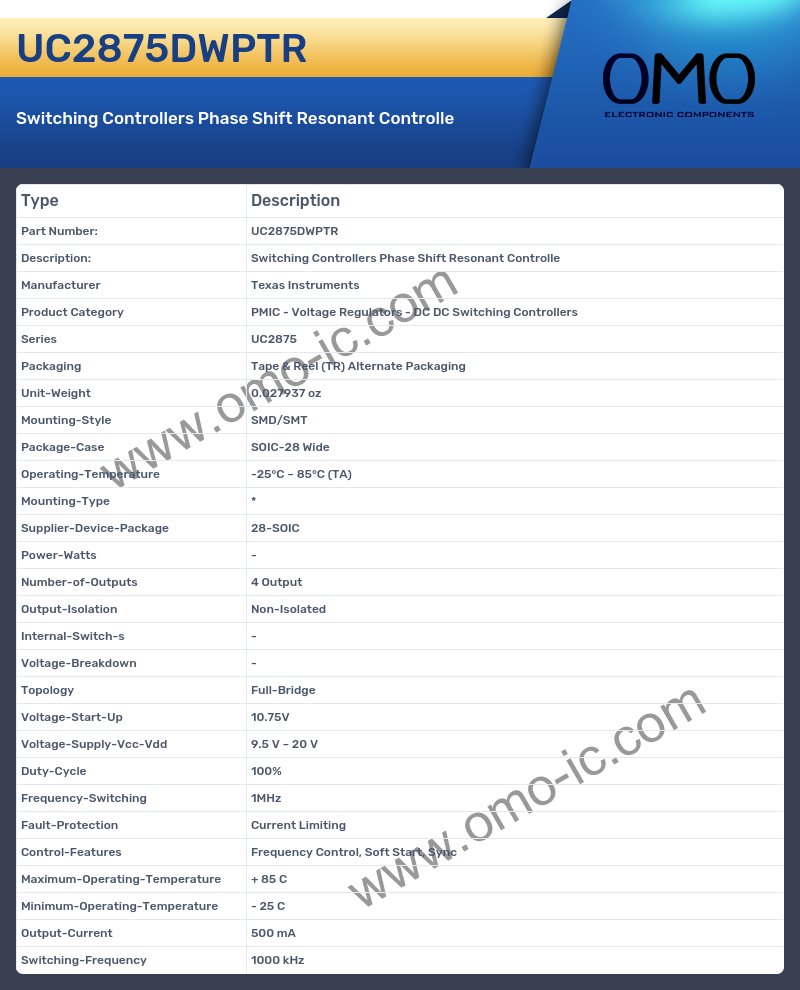

UC2875DWPTR Image

UC2875DWPTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC2875
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.027937 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28 Wide
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type *
• Supplier-Device-Package 28-SOIC
• Power-Watts -
• Number-of-Outputs 4 Output
• Output-Isolation Non-Isolated
• Internal-Switch-s -
• Voltage-Breakdown -
• Topology Full-Bridge
• Voltage-Start-Up 10.75V
• Voltage-Supply-Vcc-Vdd 9.5 V ~ 20 V
• Duty-Cycle 100%
• Frequency-Switching 1MHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control, Soft Start, Sync
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Output-Current 500 mA
• Switching-Frequency 1000 kHz
