| Mfr. #: | UC3842D8 |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | IC REG CTRLR PWM CM 8SOIC |
| 生命週期: | 製造商新產品 |
| 數據表: | UC3842D8 數據表 |
Product belongs to the UC3842 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

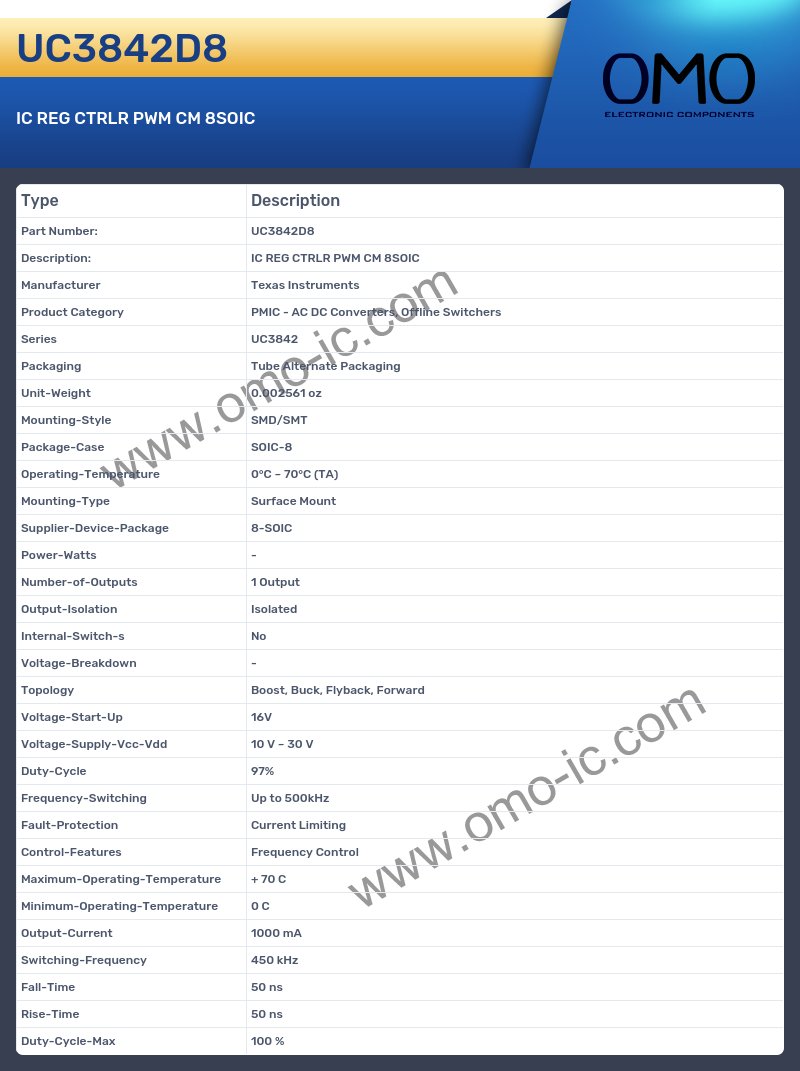

UC3842D8 Specifications
A: What is the Series of the product?
Q: The Series of the product is UC3842.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.002561 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-8
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is 0°C ~ 70°C (TA).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-SOIC.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1 Output.
A: Is the cutoff frequency of the product Output-Isolation?
Q: Yes, the product's Output-Isolation is indeed Isolated
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: At what frequency does the Topology?
Q: The product Topology is Boost, Buck, Flyback, Forward.
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 10 V ~ 30 V
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is Up to 500kHz.
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Frequency Control
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 70 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1000 mA.
A: At what frequency does the Switching-Frequency?
Q: The product Switching-Frequency is 450 kHz.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 50 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 50 ns
A: What is the Duty-Cycle-Max of the product?
Q: The Duty-Cycle-Max of the product is 100 %.
