UC3847N

UC3847N Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 6.95 V ~ 40 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: -

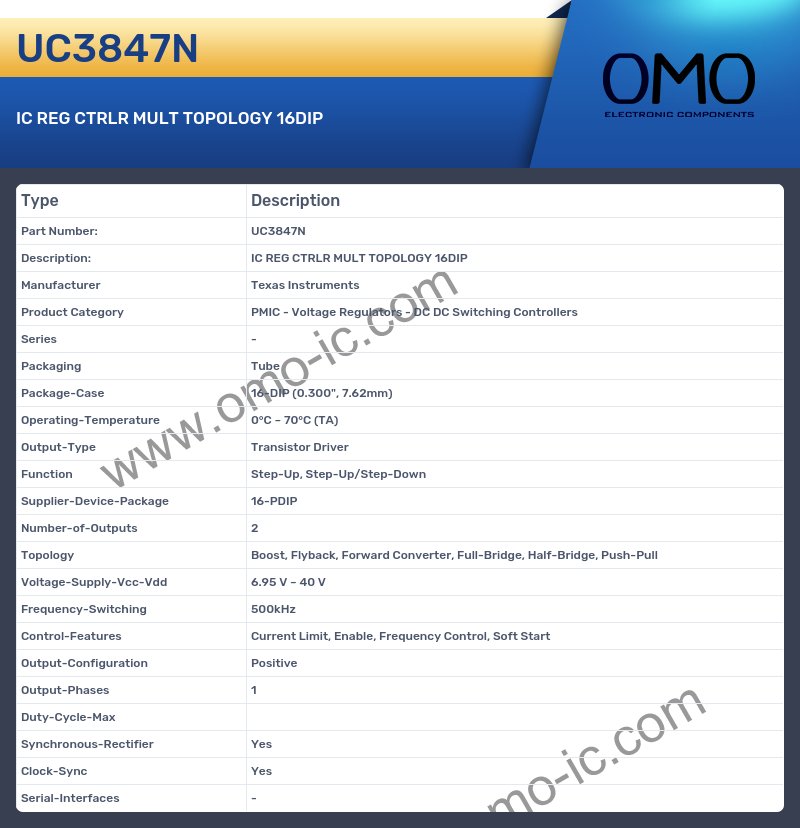

UC3847N Image

UC3847N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 2
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 6.95 V ~ 40 V
• Frequency-Switching 500kHz
• Control-Features Current Limit, Enable, Frequency Control, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
