UC3848DW

UC3848DW Overview

Product belongs to the UC3848 series. Tube is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: 0°C ~ 70°C (TA) * mounting type Supplier device package: 16-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Buck, Forward Converter feedback Supply Voltage: 10 V ~ 22 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 2000 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum duty cycle of 79.5 %

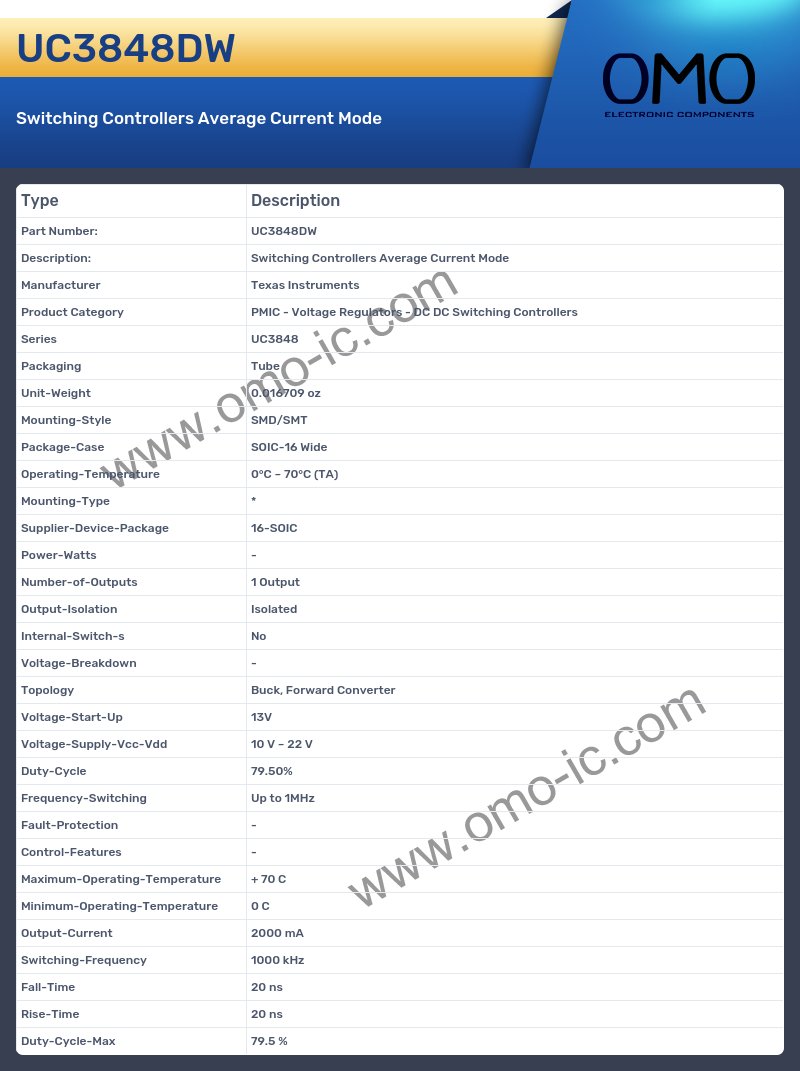

UC3848DW Image

UC3848DW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC3848
• Packaging Tube
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type *
• Supplier-Device-Package 16-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Buck, Forward Converter
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 10 V ~ 22 V
• Duty-Cycle 79.50%
• Frequency-Switching Up to 1MHz
• Fault-Protection -
• Control-Features -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Current 2000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 20 ns
• Rise-Time 20 ns
• Duty-Cycle-Max 79.5 %
