| Mfr. #: | UCC25600D |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | Switching Controllers LLC Half Bridge Resonant Cntrl |
| 生命週期: | 製造商新產品 |
| 數據表: | UCC25600D 數據表 |
Product belongs to the UCC25600 series. Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 2 Topology: Half-Bridge feedback Supply Voltage: 11.5 V ~ 18 V This product features 'Frequency-Switching' at 40kHz ~ 350kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 0.5 V to + 22.5 V Input Voltage Range: 22 V Output current: 25 mA Switching frequency is 350 kHz The UCC25600EVM.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

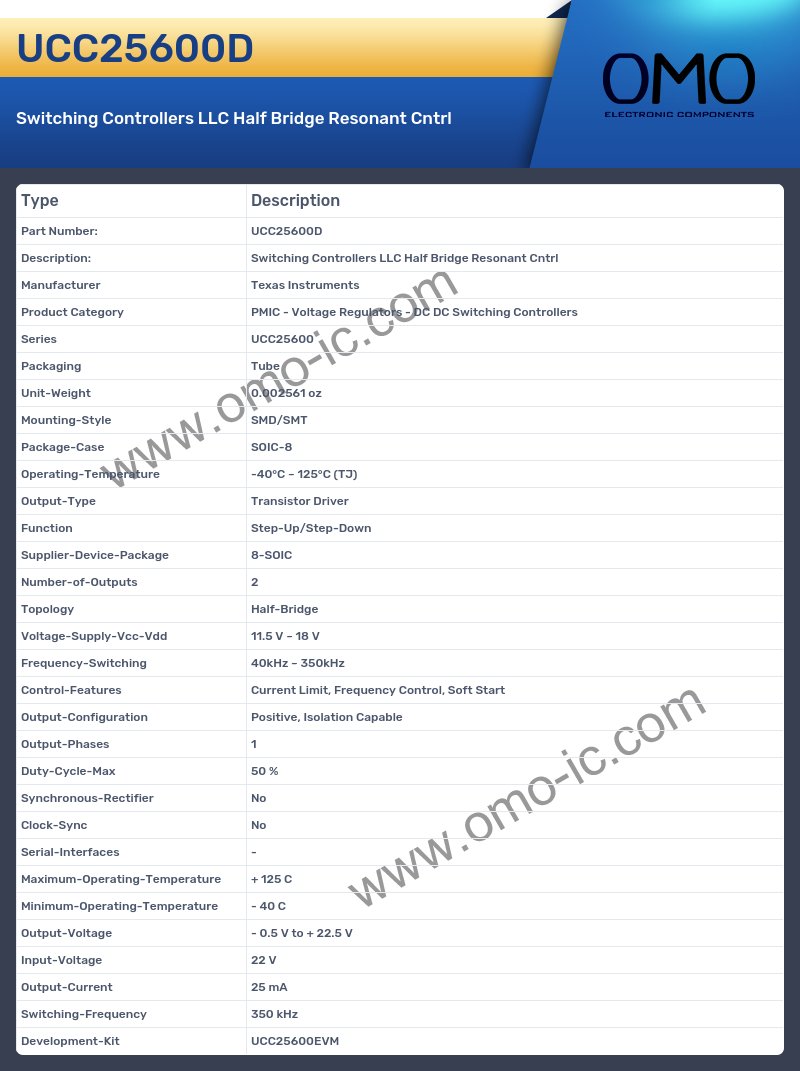

UCC25600D Specifications
A: What is the Series of the product?
Q: The Series of the product is UCC25600.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002561 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-8.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C (TJ).
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Transistor Driver.
A: Is the cutoff frequency of the product Function?
Q: Yes, the product's Function is indeed Step-Up/Step-Down
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SOIC.
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 2.
A: At what frequency does the Topology?
Q: The product Topology is Half-Bridge.
A: At what frequency does the Voltage-Supply-Vcc-Vdd?
Q: The product Voltage-Supply-Vcc-Vdd is 11.5 V ~ 18 V.
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is 40kHz ~ 350kHz.
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Current Limit, Frequency Control, Soft Start
A: What is the Output-Configuration of the product?
Q: The Output-Configuration of the product is Positive, Isolation Capable.
A: At what frequency does the Output-Phases?
Q: The product Output-Phases is 1.
A: What is the Duty-Cycle-Max of the product?
Q: The Duty-Cycle-Max of the product is 50 %.
A: Is the cutoff frequency of the product Synchronous-Rectifier?
Q: Yes, the product's Synchronous-Rectifier is indeed No
A: What is the Clock-Sync of the product?
Q: The Clock-Sync of the product is No.
A: At what frequency does the Serial-Interfaces?
Q: The product Serial-Interfaces is -.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is - 0.5 V to + 22.5 V.
A: At what frequency does the Input-Voltage?
Q: The product Input-Voltage is 22 V.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 25 mA.
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 350 kHz
A: Is the cutoff frequency of the product Development-Kit?
Q: Yes, the product's Development-Kit is indeed UCC25600EVM
