UCC27201DDA

UCC27201DDA Overview

Product belongs to the UCC27201 series. Type: High Frequency High-Side/Low-Side Tube is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style Configuration Non-Inverting Number-of-Outputs: 2 Power-off control: 2700 mW Maximum operating temperature of + 140 C Minimum operating temperature: - 40 C 5.5 mA is 92 nA. Output current: 3 A This product has a 7 ns of 16 ns. This product has a 8 ns of 16 ns. The BQ24610EVM-603. Maximum supply voltage of 20 V Minimum supply voltage is 8 V HSOP-8 Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 1 ns. 1 ns maximum turn-on delay time

UCC27201DDA Image

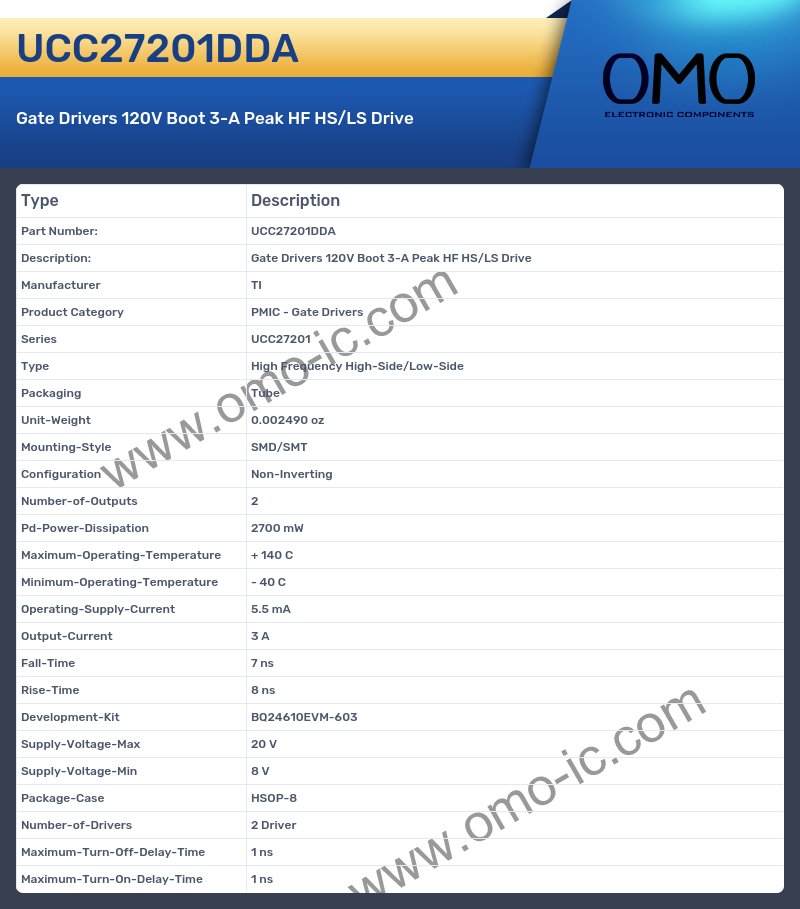

UCC27201DDA Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UCC27201
• Type High Frequency High-Side/Low-Side
• Packaging Tube
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Configuration Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 2700 mW
• Maximum-Operating-Temperature + 140 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5.5 mA
• Output-Current 3 A
• Fall-Time 7 ns
• Rise-Time 8 ns
• Development-Kit BQ24610EVM-603
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 8 V
• Package-Case HSOP-8
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 1 ns
• Maximum-Turn-On-Delay-Time 1 ns
