UCC28880D

UCC28880D Overview

Product belongs to the UCC28880 series. This product is categorized as AC/DC Converters Type: Lowest Quiescent Current Off-Line Switcher Tube Alternate Packaging is the packaging method for this product Weight of 0.008960 oz SMD/SMT Mounting-Style Wide - 40 C to + 105 C operating temperature range for diverse applications SOIC-7 Operational temperature range: -40°C ~ 105°C (TA) Surface Mount mounting type Supplier device package: 7-SOIC Number-of-Outputs: 1 Output Output-Isolation: Non-Isolated This product has Yes. Topology: Buck, Buck-Boost, Flyback feedback Supply Voltage: 3.6 V ~ 5 V This product features 'Frequency-Switching' at 62kHz for optimal performance. The Control-Features include - function. The product's Non-Isolated is non-isolated. Output voltage: 3.3 V 72 uA is 92 nA. Output current: 100 mA Switching frequency is 62 kHz Maximum duty cycle of 55 % This product requires a minimum 30 V of 2.95 V. This product has a maximum 700 V of 20 V.

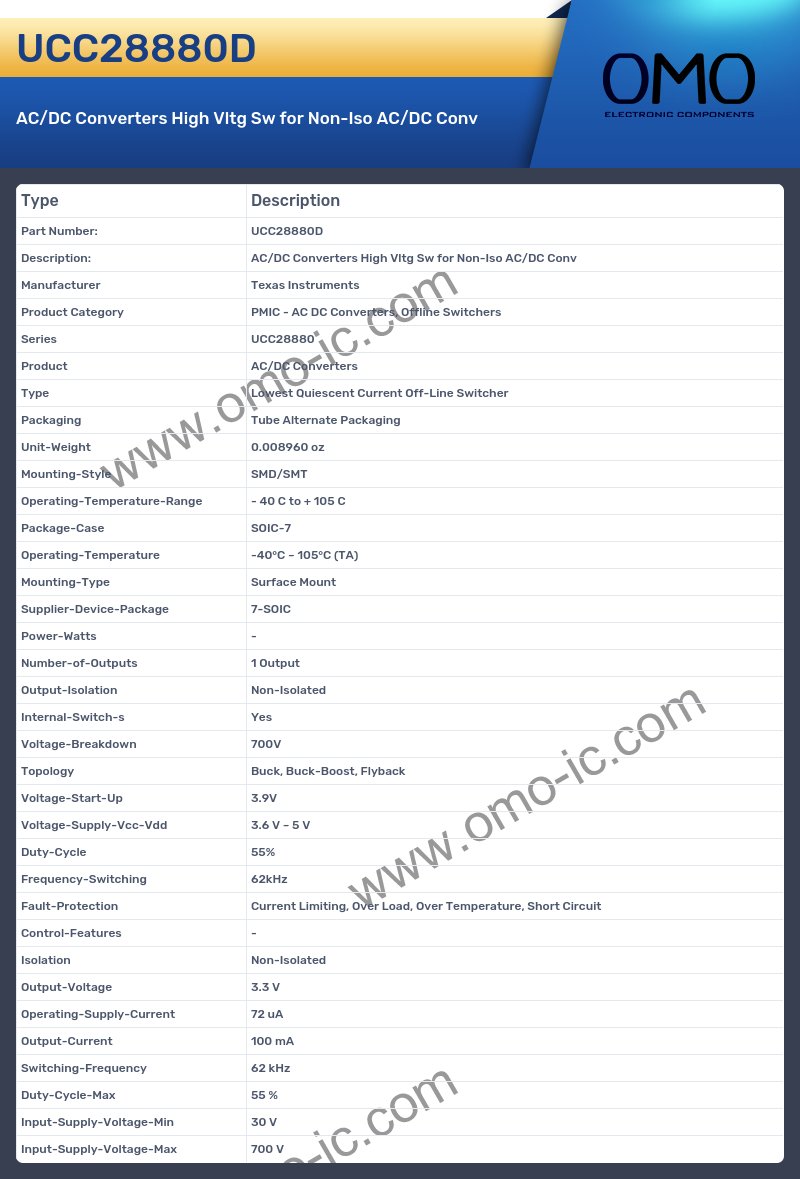

UCC28880D Image

UCC28880D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28880
• Product AC/DC Converters
• Type Lowest Quiescent Current Off-Line Switcher
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008960 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 105 C
• Package-Case SOIC-7
• Operating-Temperature -40°C ~ 105°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 7-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Non-Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 700V
• Topology Buck, Buck-Boost, Flyback
• Voltage-Start-Up 3.9V
• Voltage-Supply-Vcc-Vdd 3.6 V ~ 5 V
• Duty-Cycle 55%
• Frequency-Switching 62kHz
• Fault-Protection Current Limiting, Over Load, Over Temperature, Short Circuit
• Control-Features -
• Isolation Non-Isolated
• Output-Voltage 3.3 V
• Operating-Supply-Current 72 uA
• Output-Current 100 mA
• Switching-Frequency 62 kHz
• Duty-Cycle-Max 55 %
• Input-Supply-Voltage-Min 30 V
• Input-Supply-Voltage-Max 700 V
