UCC35706D

UCC35706D Overview

Product belongs to the UCC35706 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8 V ~ 15 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 20 mA Switching frequency is 4000 kHz This product has a 10 ns of 16 ns. This product has a 10 ns of 16 ns. Maximum duty cycle of 93 %

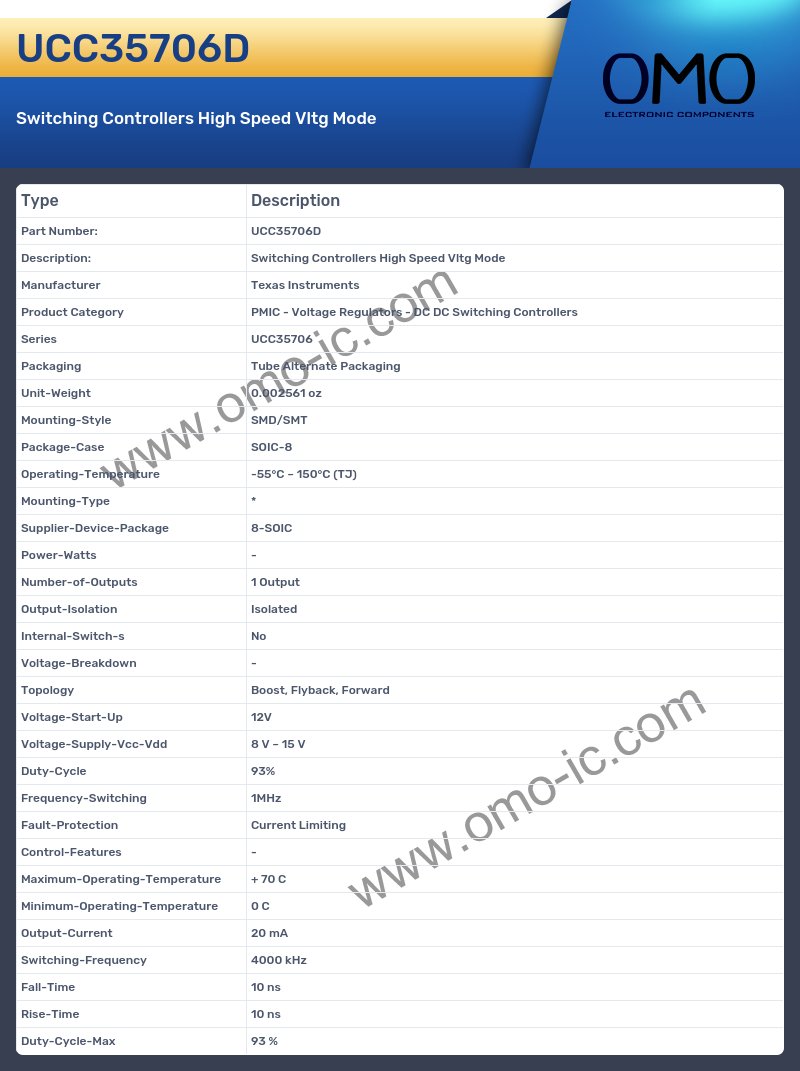

UCC35706D Image

UCC35706D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC35706
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 8-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 12V
• Voltage-Supply-Vcc-Vdd 8 V ~ 15 V
• Duty-Cycle 93%
• Frequency-Switching 1MHz
• Fault-Protection Current Limiting
• Control-Features -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Current 20 mA
• Switching-Frequency 4000 kHz
• Fall-Time 10 ns
• Rise-Time 10 ns
• Duty-Cycle-Max 93 %
