UCC384DPTR-ADJ

UCC384DPTR-ADJ Overview

Product belongs to the UCC384-ADJ series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC -3.2 V ~ -15 V voltage input Number-of-Outputs: 1 Output Output voltage: -1.25 V ~ -15 V Negative Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 1.25 V to - 15 V Maximum Input Voltage: - 15 V Output current: 500 mA The product's - 3.5 V is 5.1 V. Load regulation is 0.18 %. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 200 uA This product has a 250 uA of 7 mA, making it ideal for low-power applications. Reference voltage is - 1.23 V . The 0.25 V at 500 mA. The maximum 500 mV at 500 mA is 360 mV. This product's 3 mV is 0.01 %/V.

UCC384DPTR-ADJ Image

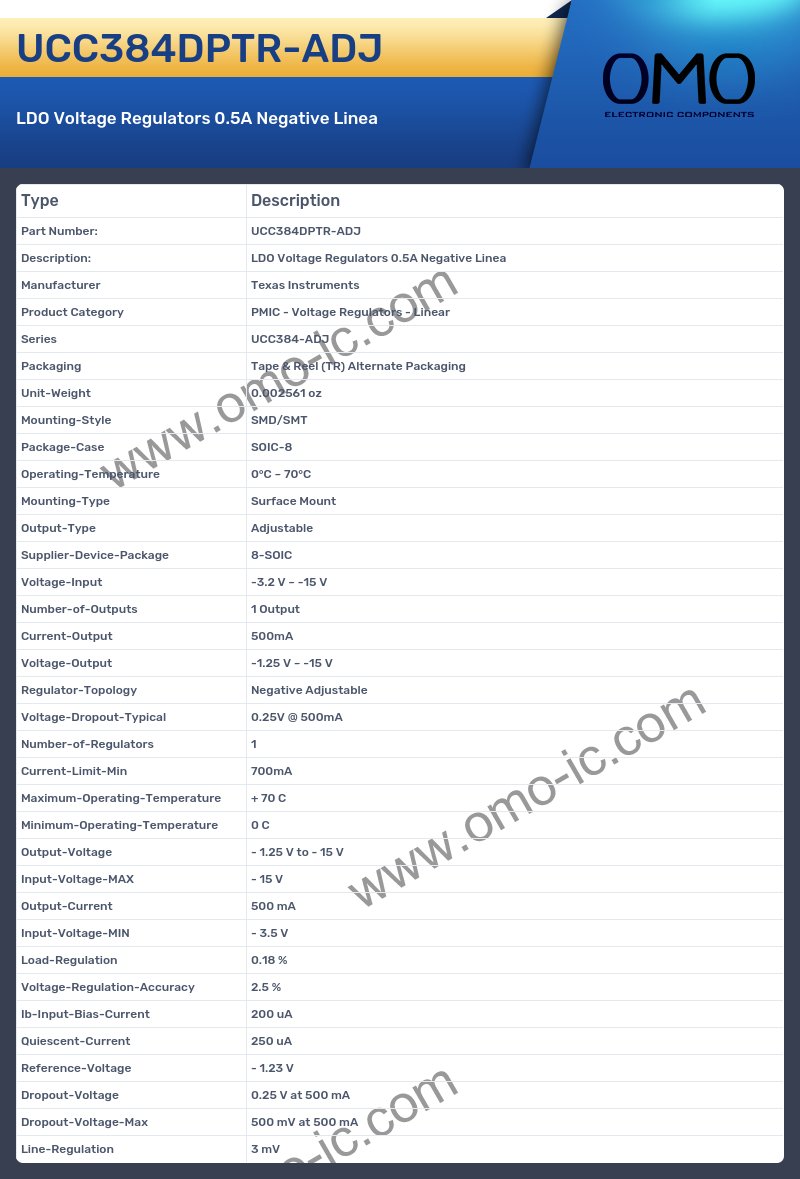

UCC384DPTR-ADJ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series UCC384-ADJ
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SOIC
• Voltage-Input -3.2 V ~ -15 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output -1.25 V ~ -15 V
• Regulator-Topology Negative Adjustable
• Voltage-Dropout-Typical 0.25V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 700mA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage - 1.25 V to - 15 V
• Input-Voltage-MAX - 15 V
• Output-Current 500 mA
• Input-Voltage-MIN - 3.5 V
• Load-Regulation 0.18 %
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 200 uA
• Quiescent-Current 250 uA
• Reference-Voltage - 1.23 V
• Dropout-Voltage 0.25 V at 500 mA
• Dropout-Voltage-Max 500 mV at 500 mA
• Line-Regulation 3 mV
