| Mfr. #: | UCD7201PWPR |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | Gate Drivers Digital Cntrl Compat Dual Low Side +/- 4A |
| 生命週期: | 製造商新產品 |
| 數據表: | UCD7201PWPR 數據表 |
Product belongs to the UCD7201 series. Type: Low-Side Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002046 oz SMD/SMT Mounting-Style HTSSOP-14 Operational temperature range: 10ns, 10ns -40°C ~ 105°C (TJ) mounting type Supplier device package: 14-TSSOP (0.173", 4.40mm Width) Exposed Pad Resolution-Bits: 2 Data-Interface: Independent The Voltage-Supply-Analog is Non-Inverting. The Voltage Supply Digital for this product is -. Configuration Dual Uncommitted Non-Inverting 4.25 V ~ 15 V is supported. Number-of-Outputs: 2 Output Power-off control: 2670 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 20 mA is 92 nA. Output current: 4 A This product has a 10 ns of 16 ns. This product has a 10 ns of 16 ns. Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V Number-of-Drivers: 2 Driver
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

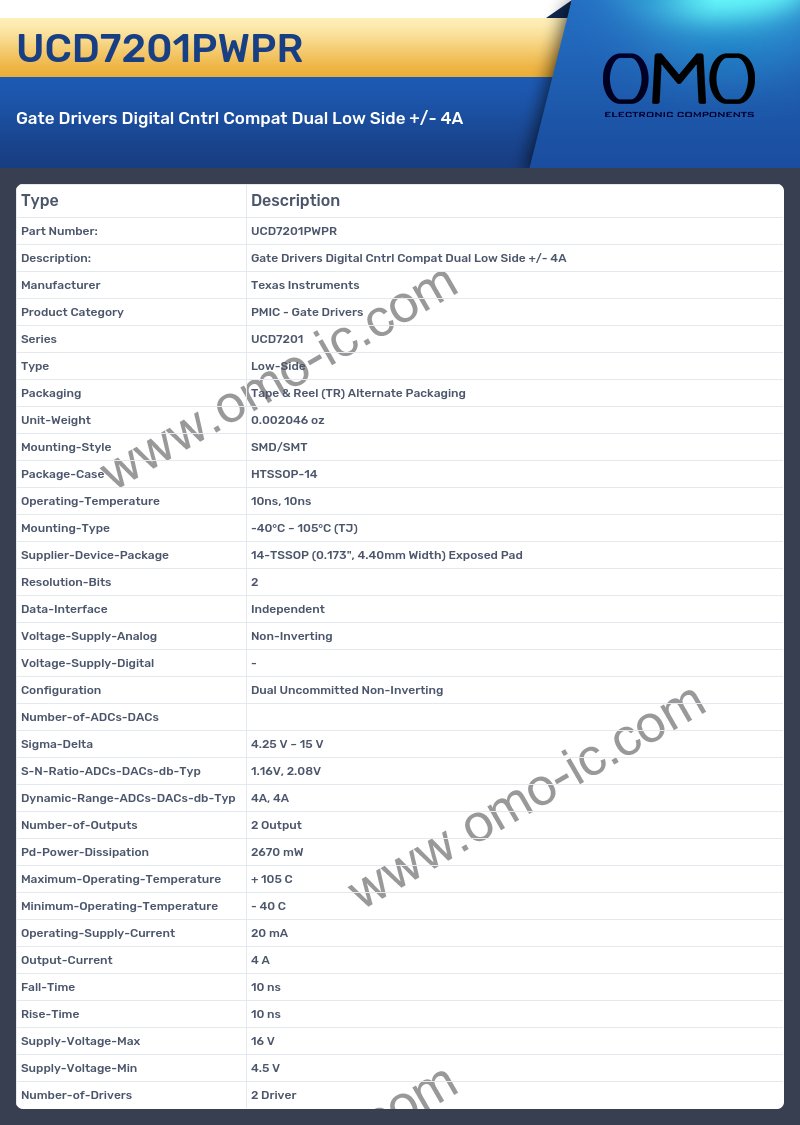

UCD7201PWPR Specifications
