UCD7230PWPG4

UCD7230PWPG4 Overview

Product belongs to the UCD7230 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz HTSSOP-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 15.5 V This product features 'Frequency-Switching' at Up to 2MHz for optimal performance. The Control-Features include Current Limit, Enable function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C

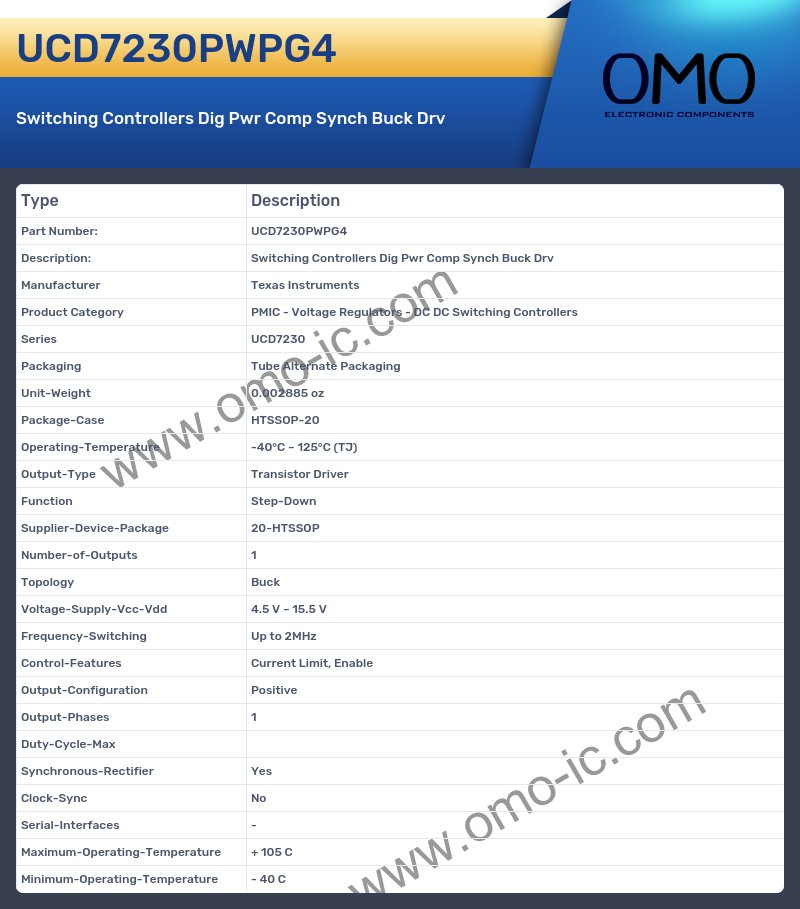

UCD7230PWPG4 Image

UCD7230PWPG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCD7230
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 15.5 V
• Frequency-Switching Up to 2MHz
• Control-Features Current Limit, Enable
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
