UCD9240PFC

UCD9240PFC Overview

Product belongs to the Fusion Digital Power series. Tray Alternate Packaging is the packaging method for this product Weight of 0.013178 oz SMD/SMT Mounting-Style TQFP-80 Operational temperature range: -40°C ~ 110°C Surface Mount mounting type Versatile Special Purpose applications for maximum usability Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 80-TQFP (12x12) This product has a - of 200μA. Number-of-Outputs: 8 Output Topology: Buck feedback Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. This product is an DIGITAL POINT OF LOAD SYSTEM CONTROLLER. 55 mA is 92 nA. Output current: 6 mA Switching frequency is 2 MHz Maximum duty cycle of 100 %

UCD9240PFC Image

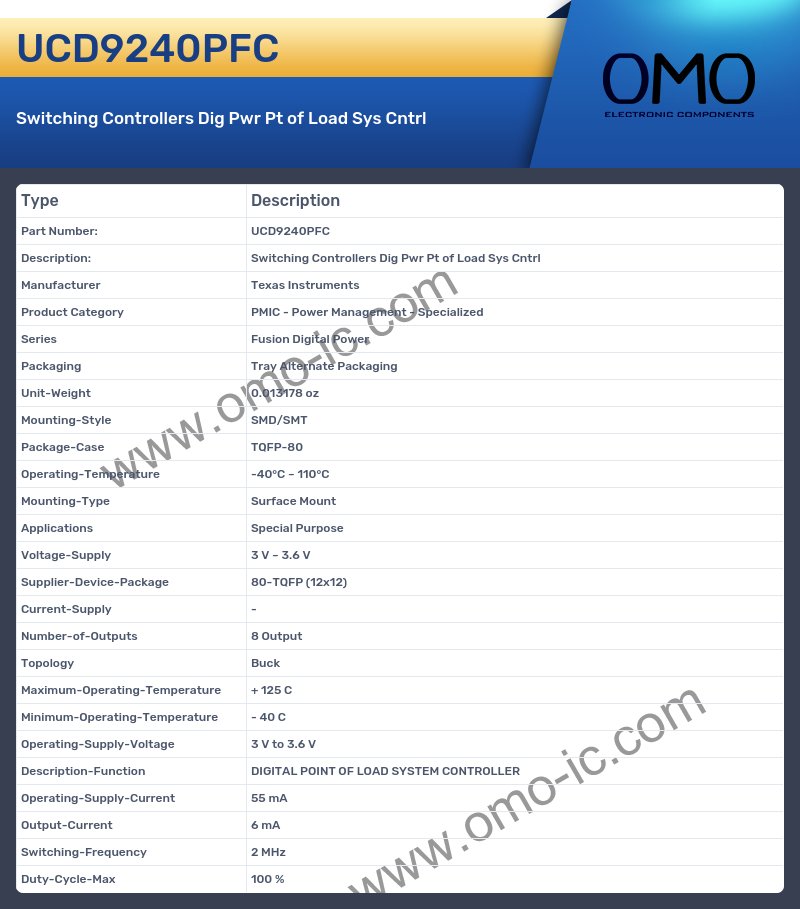

UCD9240PFC Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Management - Specialized
• Series Fusion Digital Power
• Packaging Tray Alternate Packaging
• Unit-Weight 0.013178 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-80
• Operating-Temperature -40°C ~ 110°C
• Mounting-Type Surface Mount
• Applications Special Purpose
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 80-TQFP (12x12)
• Current-Supply -
• Number-of-Outputs 8 Output
• Topology Buck
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Description-Function DIGITAL POINT OF LOAD SYSTEM CONTROLLER
• Operating-Supply-Current 55 mA
• Output-Current 6 mA
• Switching-Frequency 2 MHz
• Duty-Cycle-Max 100 %
