| Mfr. #: | ULN2003AIN |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | Darlington Transistors HiVltg Hi-Current Darl Trans Array |
| 生命週期: | 製造商新產品 |
| 數據表: | ULN2003AIN 數據表 |

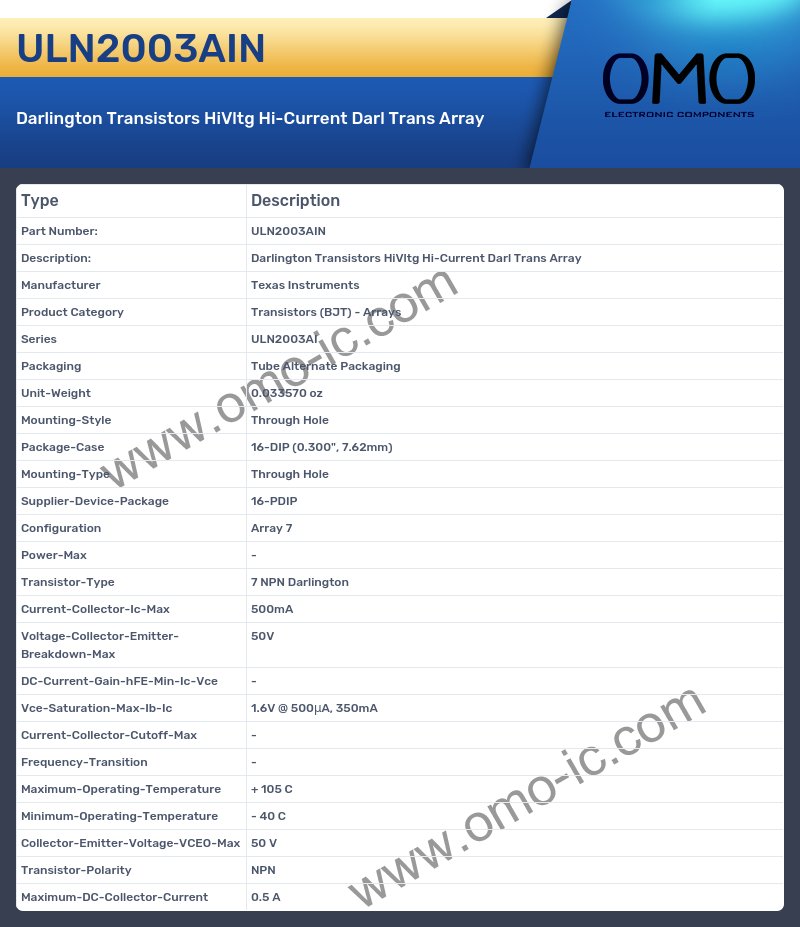

Product belongs to the ULN2003AI series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style 16-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-PDIP Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ULN2003AIN Specifications
