| Mfr. #: | ULN2004D1013TR |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | Darlington Transistors Seven NPN Array |
| 生命週期: | 製造商新產品 |
| 數據表: | ULN2004D1013TR 數據表 |
Product belongs to the ULN2004 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 16-SO Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

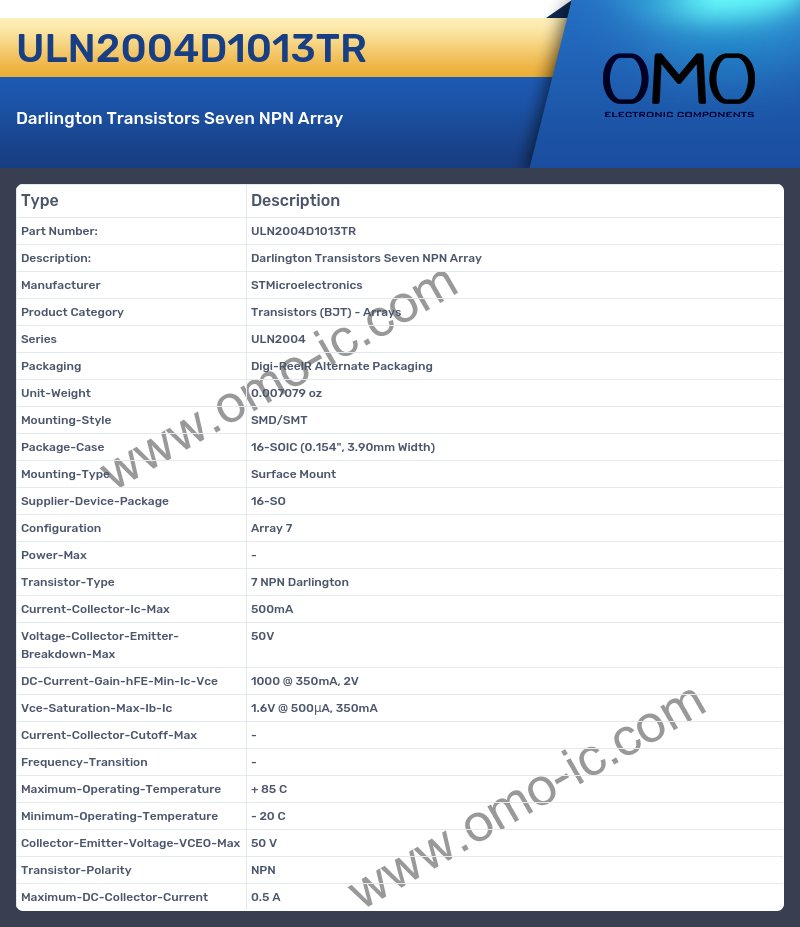

ULN2004D1013TR Specifications
A: What is the Series of the product?
Q: The Series of the product is ULN2004.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.007079 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed 16-SOIC (0.154", 3.90mm Width)
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-SO
A: At what frequency does the Configuration?
Q: The product Configuration is Array 7.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 7 NPN Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 500mA
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 50V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 1000 @ 350mA, 2V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 1.6V @ 500μA, 350mA.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 20 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 50 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 0.5 A
