USBP01-5M8 Overview

Product belongs to the USB series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. uQFN-8L Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 5 Channel Supplier device package: 8-μQFN (1.7x1.35) 5 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is -. Yes Power-Line-Protection 0.2pF @ 200MHz ~ 3GHz Capacitance-Frequency Power-off control: 90 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 6 V The Cd-Diode-Capacitance is 0.2 pF 3 V working voltage Polarity: Unidirectional 30 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap

USBP01-5M8 Image

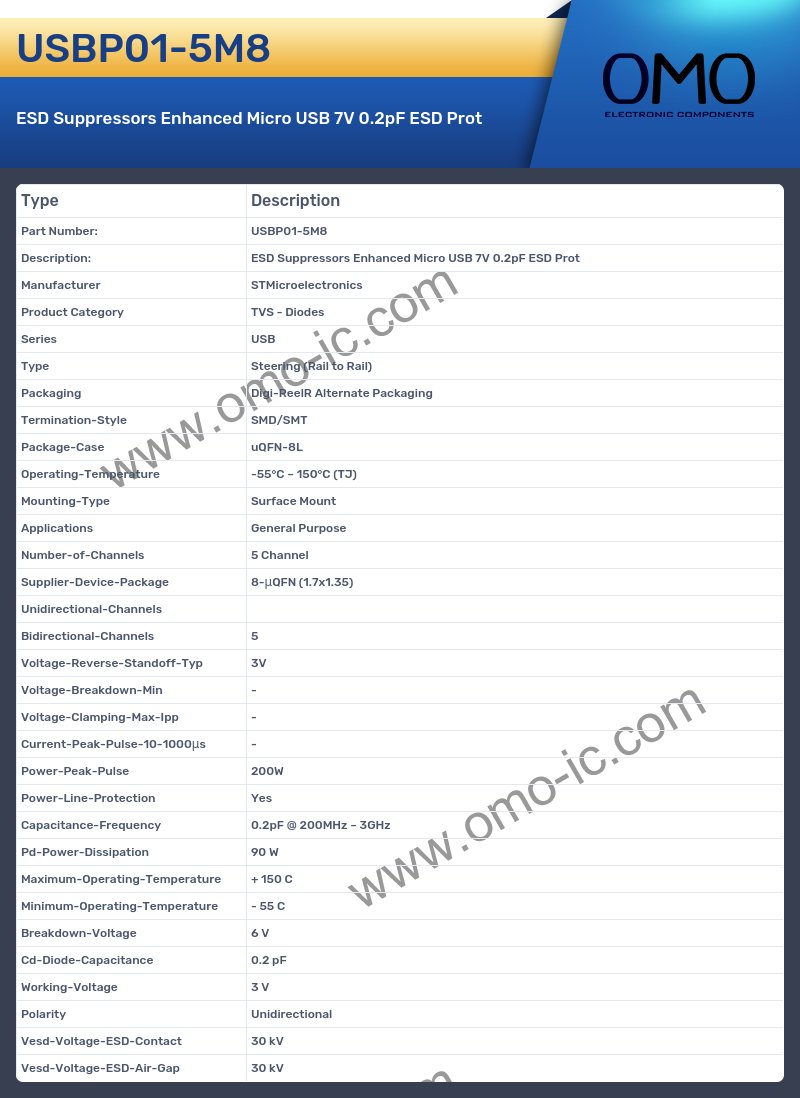

USBP01-5M8 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series USB
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case uQFN-8L
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 5 Channel
• Supplier-Device-Package 8-μQFN (1.7x1.35)
• Unidirectional-Channels
• Bidirectional-Channels 5
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min -
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 200W
• Power-Line-Protection Yes
• Capacitance-Frequency 0.2pF @ 200MHz ~ 3GHz
• Pd-Power-Dissipation 90 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 6 V
• Cd-Diode-Capacitance 0.2 pF
• Working-Voltage 3 V
• Polarity Unidirectional
• Vesd-Voltage-ESD-Contact 30 kV
• Vesd-Voltage-ESD-Air-Gap 30 kV
