| Mfr. #: | VIPER17HN |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IC OFFLINE CONV PWM OVP OCP 8DIP |
| 生命週期: | 製造商新產品 |
| 數據表: | VIPER17HN 數據表 |
Product belongs to the VIPer plus series. Type: Offline Converter Tube is the packaging method for this product Weight of 0.030018 oz Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications DIP-7 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Supplier device package: 8-DIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8.5 V ~ 23.5 V This product features 'Frequency-Switching' at 115kHz for optimal performance. The Control-Features include - function. The product's Isolated is non-isolated. Maximum operating temperature of + 150 C Output voltage: 800 V 1.8 mA is 92 nA. Output current: 420 mA Switching frequency is 115 kHz Maximum duty cycle of 80 % This product requires a minimum 8.5 V of 2.95 V. This product has a maximum 23.5 V of 20 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

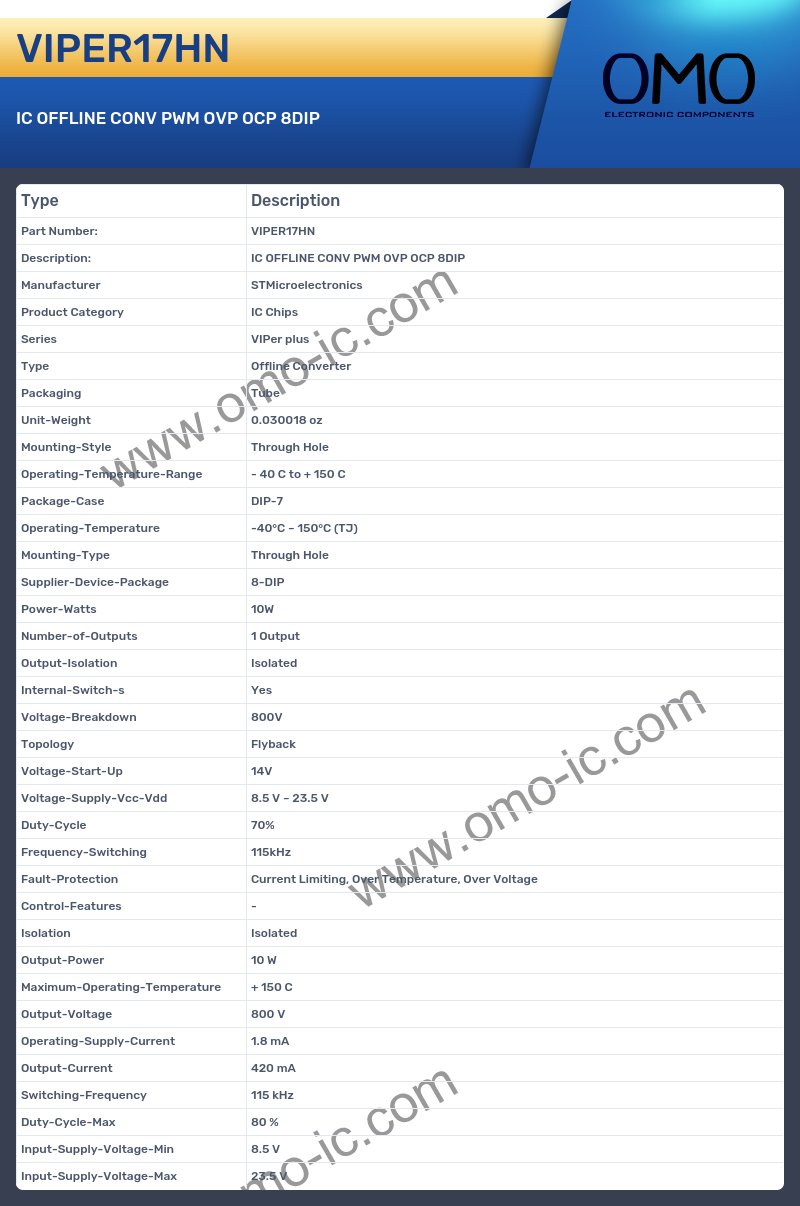

VIPER17HN Specifications
A: What is the Series of the product?
Q: The Series of the product is VIPer plus.
A: What is the Type of the product?
Q: The Type of the product is Offline Converter.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.030018 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Operating-Temperature-Range?
Q: Yes, the product's Operating-Temperature-Range is indeed - 40 C to + 150 C
A: What is the Package-Case of the product?
Q: The Package-Case of the product is DIP-7.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-DIP.
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: At what frequency does the Output-Isolation?
Q: The product Output-Isolation is Isolated.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed Yes
A: What is the Topology of the product?
Q: The Topology of the product is Flyback.
A: At what frequency does the Voltage-Supply-Vcc-Vdd?
Q: The product Voltage-Supply-Vcc-Vdd is 8.5 V ~ 23.5 V.
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is 115kHz.
A: What is the Control-Features of the product?
Q: The Control-Features of the product is -.
A: What is the Isolation of the product?
Q: The Isolation of the product is Isolated.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 800 V.
A: What is the Operating-Supply-Current of the product?
Q: The Operating-Supply-Current of the product is 1.8 mA.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 420 mA.
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 115 kHz
A: What is the Duty-Cycle-Max of the product?
Q: The Duty-Cycle-Max of the product is 80 %.
A: What is the Input-Supply-Voltage-Min of the product?
Q: The Input-Supply-Voltage-Min of the product is 8.5 V.
A: What is the Input-Supply-Voltage-Max of the product?
Q: The Input-Supply-Voltage-Max of the product is 23.5 V.
