VIPER26HN

VIPER26HN Overview

Product belongs to the VIPer plus series. Tube is the packaging method for this product Weight of 0.030018 oz Through Hole Mounting-Style Wide - 25 C to + 125 C operating temperature range for diverse applications PDIP-7 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Supplier device package: 7-DIP Number-of-Outputs: 1 Output Output-Isolation: Either This product has Yes. Topology: Flyback feedback Supply Voltage: 11.5 V ~ 23.5 V This product features 'Frequency-Switching' at 115kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C 600 uA is 92 nA. Output current: 1 A Switching frequency is 115 kHz Maximum duty cycle of 80 %

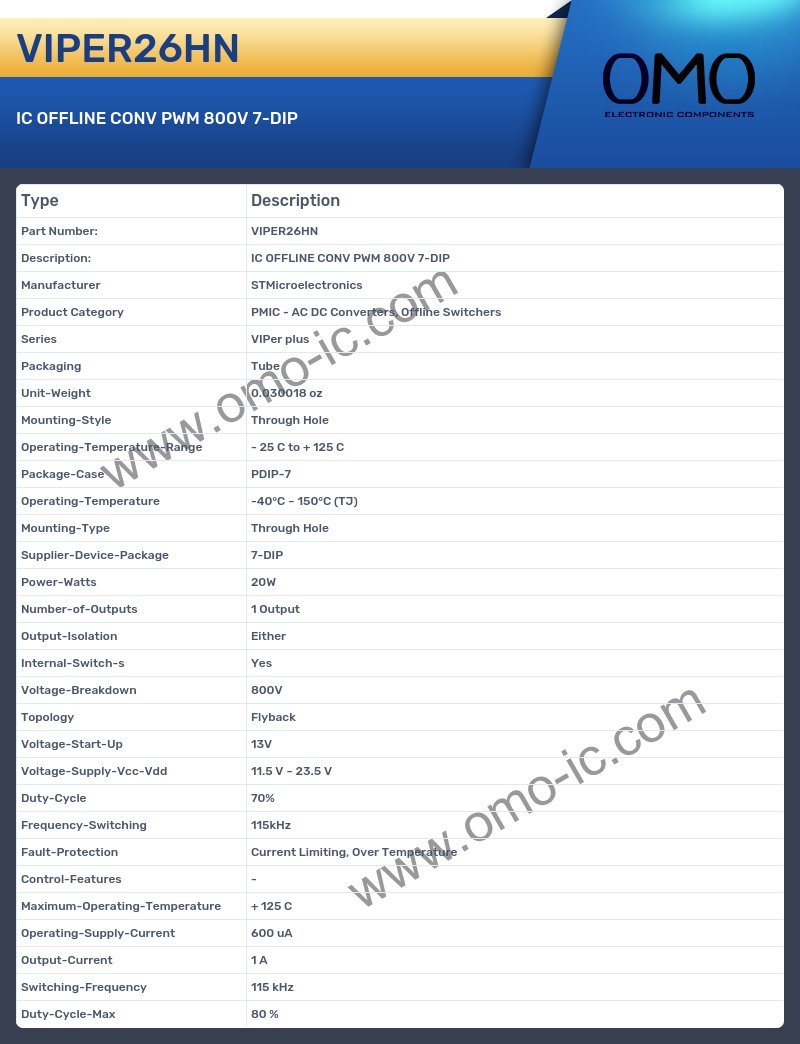

VIPER26HN Image

VIPER26HN Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPer plus
• Packaging Tube
• Unit-Weight 0.030018 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 25 C to + 125 C
• Package-Case PDIP-7
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Supplier-Device-Package 7-DIP
• Power-Watts 20W
• Number-of-Outputs 1 Output
• Output-Isolation Either
• Internal-Switch-s Yes
• Voltage-Breakdown 800V
• Topology Flyback
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 11.5 V ~ 23.5 V
• Duty-Cycle 70%
• Frequency-Switching 115kHz
• Fault-Protection Current Limiting, Over Temperature
• Control-Features -
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Current 600 uA
• Output-Current 1 A
• Switching-Frequency 115 kHz
• Duty-Cycle-Max 80 %
