VN5772AKTR-E

VN5772AKTR-E Overview

Product belongs to the OMNIFET III, VIPower series. This product is categorized as Brushed DC Motor Drivers Type: Quad Smart Power Solid State Relay for H Bridge Configurations Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose, Relays applications for maximum usability Interface: Logic Voltage Supply Range: 4.5 V ~ 36 V Supplier device package: 28-SO (double island) Current-Output-Channel is 18A The Half Bridge (2). This product supports a Inductive, Capacitive, Resistive of Inductive, Capacitive, Resistive for versatile applications. The 50 mOhm (Max). The product's - is 4A. Voltage-Load range is 41V (Max). This product operates at a 36 V supply voltage for reliable performance. 3 mA is 92 nA. Output current: 18 A

VN5772AKTR-E Image

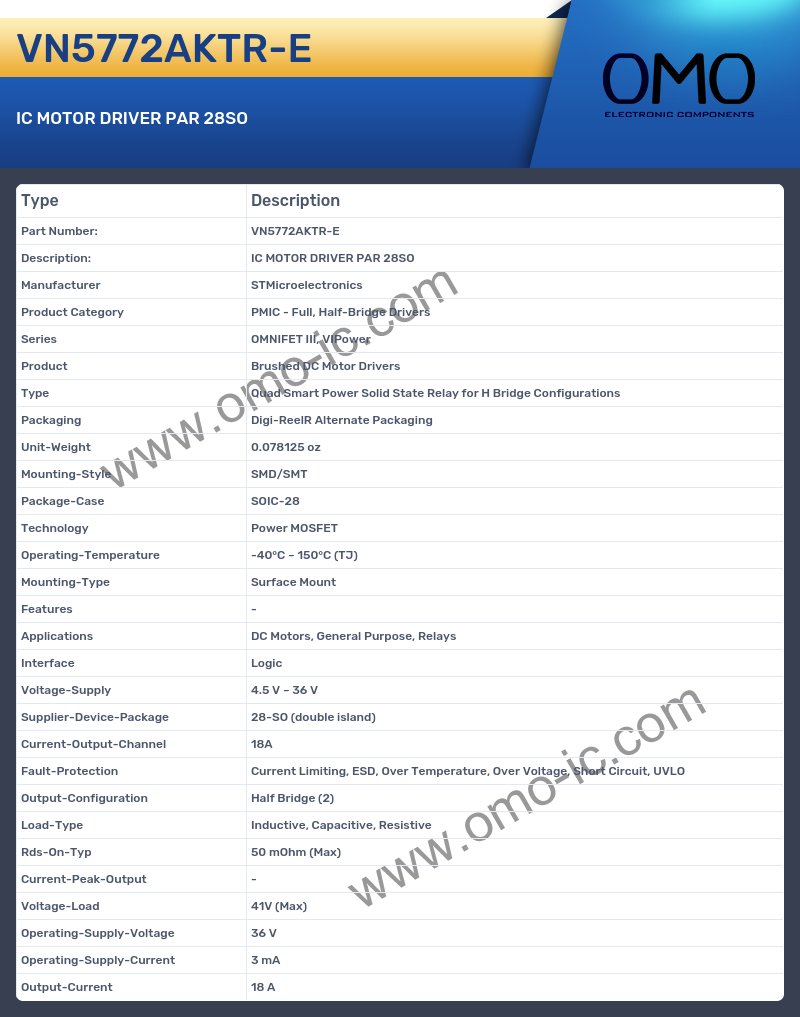

VN5772AKTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series OMNIFET III, VIPower
• Product Brushed DC Motor Drivers
• Type Quad Smart Power Solid State Relay for H Bridge Configurations
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features -
• Applications DC Motors, General Purpose, Relays
• Interface Logic
• Voltage-Supply 4.5 V ~ 36 V
• Supplier-Device-Package 28-SO (double island)
• Current-Output-Channel 18A
• Fault-Protection Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO
• Output-Configuration Half Bridge (2)
• Load-Type Inductive, Capacitive, Resistive
• Rds-On-Typ 50 mOhm (Max)
• Current-Peak-Output -
• Voltage-Load 41V (Max)
• Operating-Supply-Voltage 36 V
• Operating-Supply-Current 3 mA
• Output-Current 18 A
