VND7020AJTR

VND7020AJTR Overview

Product belongs to the VIPower series. This product is categorized as Driver ICs - Various Type: High Side Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-16 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 22 mOhm. Voltage-Load range is 4 V ~ 28 V. Our product delivers a 45A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 5 V 5 mA is 92 nA. Output current: 3 uA The 22 mOhms for this product is 12 Ohms. Maximum supply voltage of 28 V Minimum supply voltage is 4 V Number-of-Drivers: 2 Driver

VND7020AJTR Image

VND7020AJTR Specifications

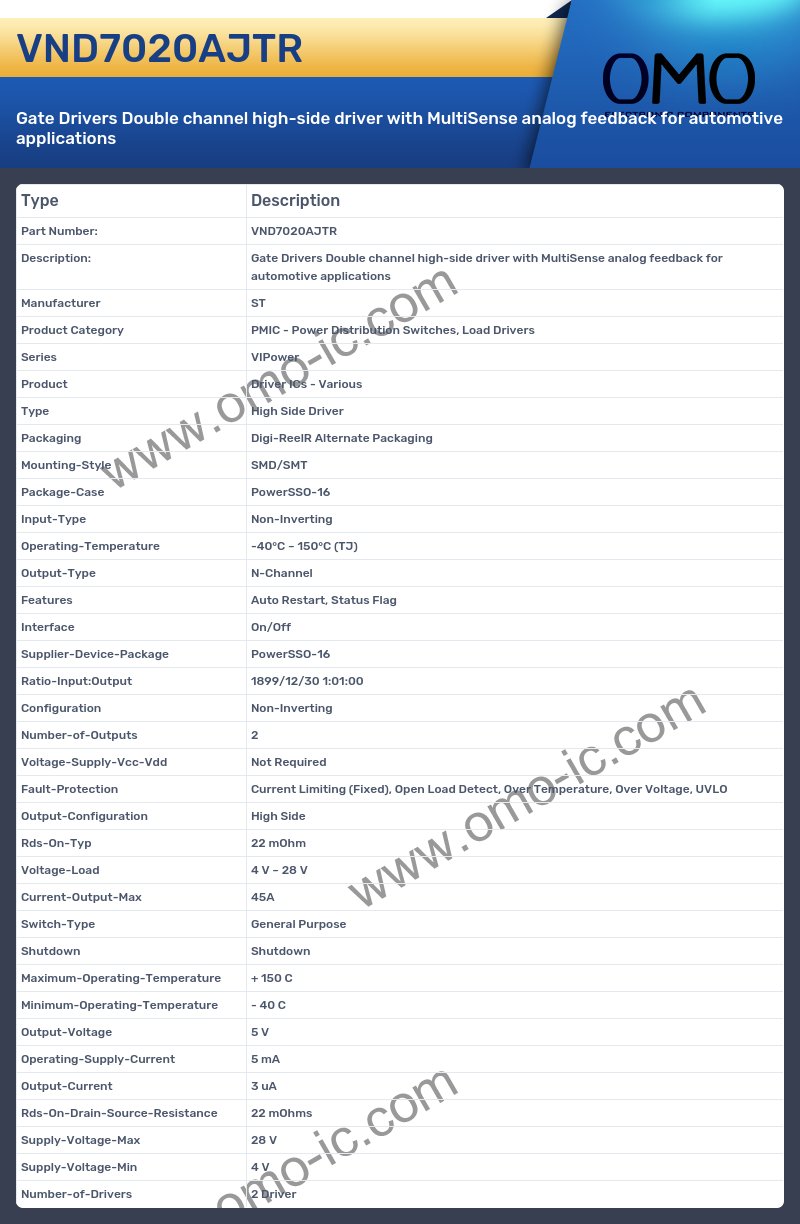

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Product Driver ICs - Various
• Type High Side Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSSO-16
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Output-Configuration High Side
• Rds-On-Typ 22 mOhm
• Voltage-Load 4 V ~ 28 V
• Current-Output-Max 45A
• Switch-Type General Purpose
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Operating-Supply-Current 5 mA
• Output-Current 3 uA
• Rds-On-Drain-Source-Resistance 22 mOhms
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 4 V
• Number-of-Drivers 2 Driver
