VNH7013XPTR-E

VNH7013XPTR-E Overview

Product belongs to the VIPower series. This product is categorized as Brushed DC Motor Drivers Type: H-Bridge Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-36 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 175°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose applications for maximum usability Interface: Logic Voltage Supply Range: 72V (Max) Supplier device package: PowerSSO-36 Current-Output-Channel is 40A The Half Bridge (2). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 7.3 mOhm LS, 5.7 mOhm HS. The product's - is 4A. Voltage-Load range is -. This product operates at a 72 V supply voltage for reliable performance. Output current: 40 A

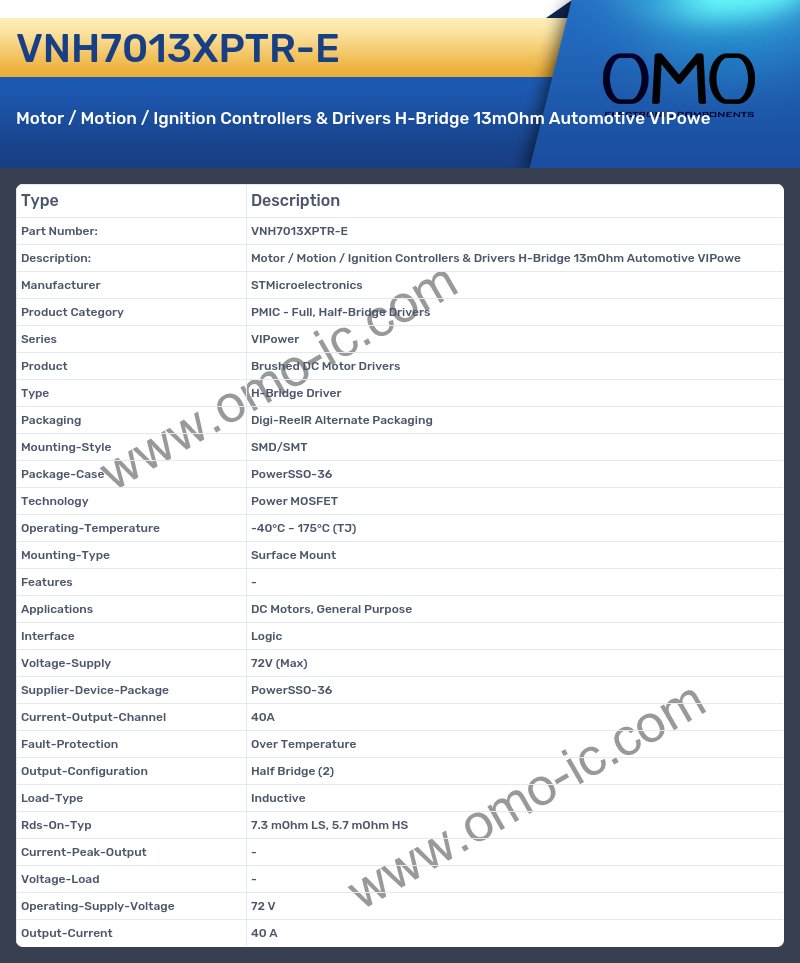

VNH7013XPTR-E Image

VNH7013XPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series VIPower
• Product Brushed DC Motor Drivers
• Type H-Bridge Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-36
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Features -
• Applications DC Motors, General Purpose
• Interface Logic
• Voltage-Supply 72V (Max)
• Supplier-Device-Package PowerSSO-36
• Current-Output-Channel 40A
• Fault-Protection Over Temperature
• Output-Configuration Half Bridge (2)
• Load-Type Inductive
• Rds-On-Typ 7.3 mOhm LS, 5.7 mOhm HS
• Current-Peak-Output -
• Voltage-Load -
• Operating-Supply-Voltage 72 V
• Output-Current 40 A
