VNI2140J

VNI2140J Overview

Product belongs to the VNI2140J series. This product is categorized as Relay Drivers Type: Dual High Side Smart Power Solid State Relay Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-12 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-12 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Dual Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 80 mOhm. Voltage-Load range is 9 V ~ 45 V. Our product delivers a 500mA of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 180 C Output voltage: 45 V 4 mA is 92 nA. Output current: 1 A This product has a 8 us of 16 ns. This product has a 10 us of 16 ns. Maximum supply voltage of 45 V Minimum supply voltage is 9 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 30 us. 20 us maximum turn-on delay time

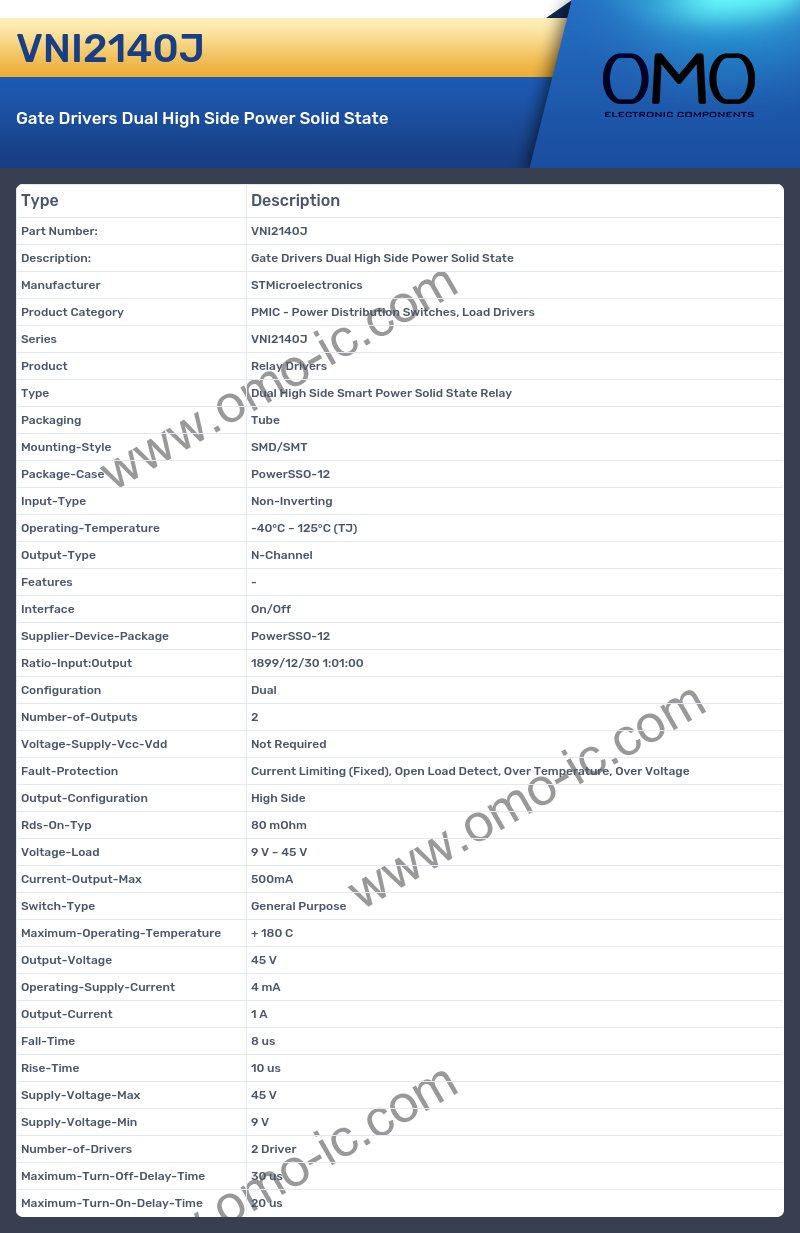

VNI2140J Image

VNI2140J Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VNI2140J
• Product Relay Drivers
• Type Dual High Side Smart Power Solid State Relay
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-12
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package PowerSSO-12
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Dual
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 80 mOhm
• Voltage-Load 9 V ~ 45 V
• Current-Output-Max 500mA
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 180 C
• Output-Voltage 45 V
• Operating-Supply-Current 4 mA
• Output-Current 1 A
• Fall-Time 8 us
• Rise-Time 10 us
• Supply-Voltage-Max 45 V
• Supply-Voltage-Min 9 V
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 30 us
• Maximum-Turn-On-Delay-Time 20 us
