VNQ810P-E Overview

Product belongs to the VIPower series. Type: High Side Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SO-28 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 28-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 160 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 6.25 W This product operates at a 36 V supply voltage for reliable performance. 12 uA is 92 nA.

VNQ810P-E Image

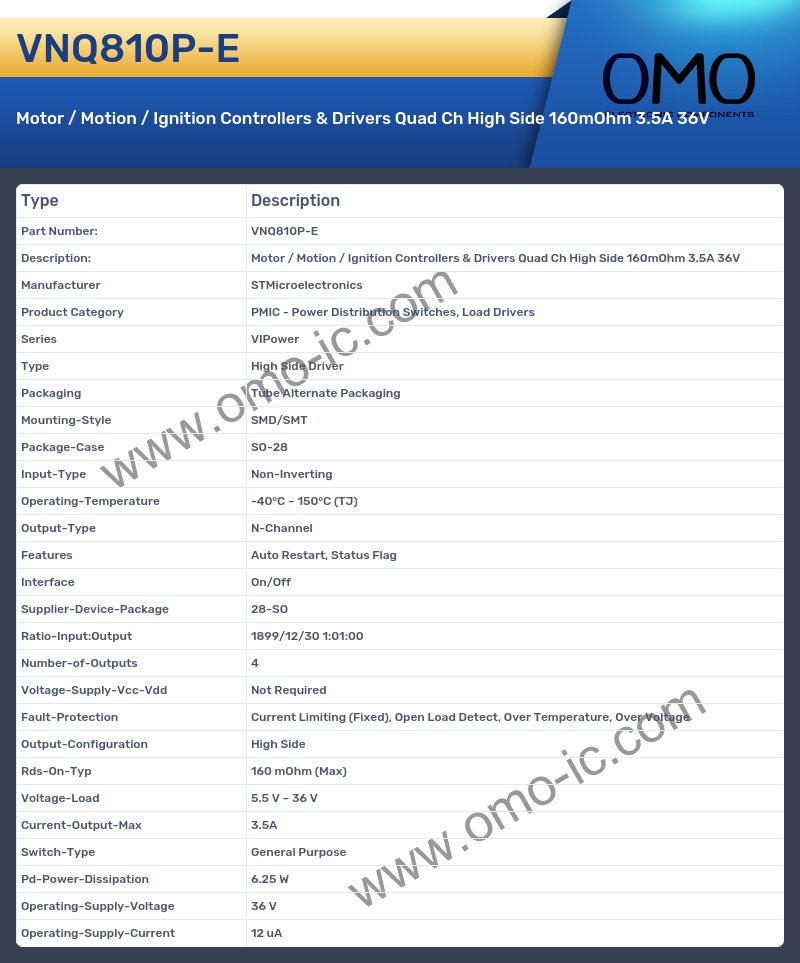

VNQ810P-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Type High Side Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SO-28
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package 28-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 160 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 3.5A
• Switch-Type General Purpose
• Pd-Power-Dissipation 6.25 W
• Operating-Supply-Voltage 36 V
• Operating-Supply-Current 12 uA
