VNV49N04

VNV49N04 Overview

Product belongs to the OMNIFET, VIPower series. Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 40 mOhm (Max). Voltage-Load range is 33V (Max). Our product delivers a 28A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 125 W This product operates at a 18 V supply voltage for reliable performance. Output current: 28 A Max on-resistance of 40 mOhms

VNV49N04 Image

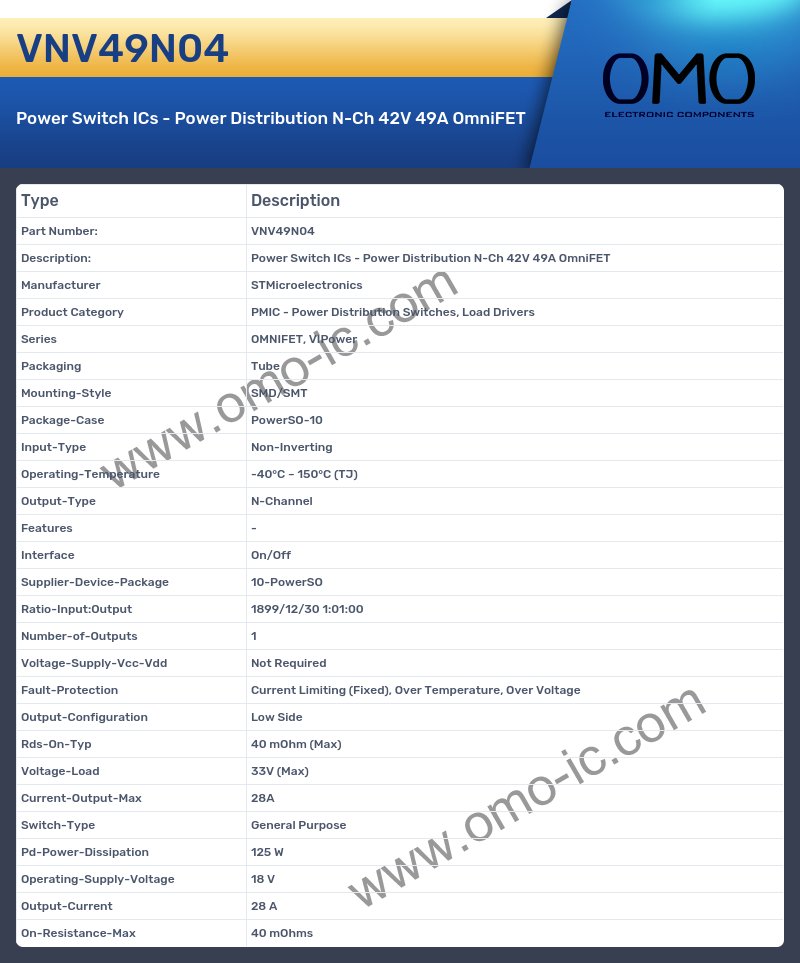

VNV49N04 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET, VIPower
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 10-PowerSO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 40 mOhm (Max)
• Voltage-Load 33V (Max)
• Current-Output-Max 28A
• Switch-Type General Purpose
• Pd-Power-Dissipation 125 W
• Operating-Supply-Voltage 18 V
• Output-Current 28 A
• On-Resistance-Max 40 mOhms
